Removal And Installation: Muffler: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not use silicone based sprays or lubricants on any components installed onto or around the diesel exhaust system or intake air distribution and filtering system. Silicone reacts with the Nitrogen Oxides (NOx) sensors and may cause permanent damage to the NOx sensors.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Clean all exhaust connections before reassembly.
- Position vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the tailpipe. Refer to: Tailpipe .

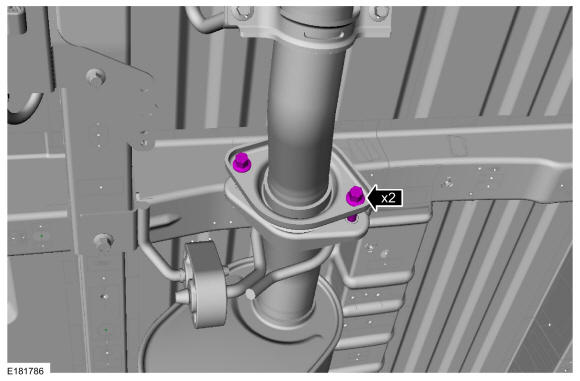

- Remove the bolts.
Torque: 30 lb.ft (40 Nm)

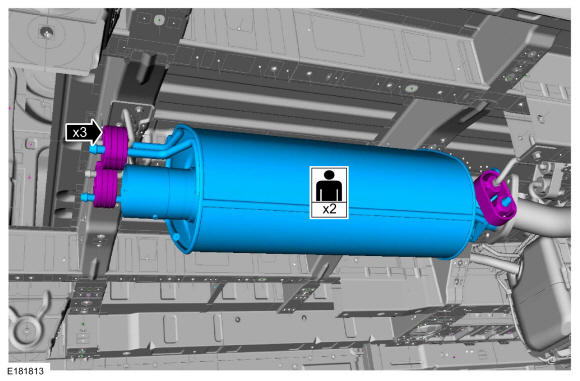

- Release the 3 exhaust insulators and remove the muffler.
