Fuel Tank Filler Pipe: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation steps.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Drain the fuel tank. Refer to: Fuel Tank Draining .
-
NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain any residual fuel into a suitable container.

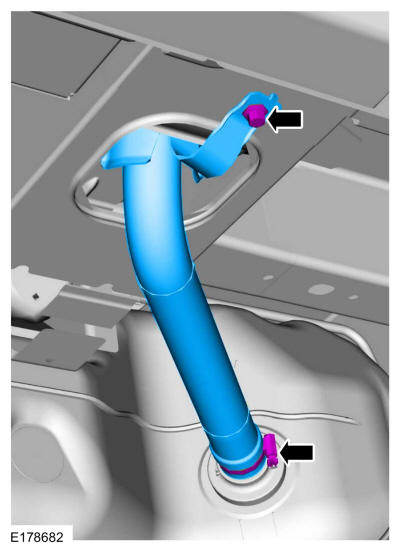

- Remove the fuel tank filler pipe bracket bolt.
Torque: 18 lb.ft (25 Nm)
- Loosen the fuel tank filler pipe hose clamp and remove the hose from the fuel tank.
- Remove the fuel tank filler pipe bracket bolt.
