Exhaust Gas Recirculation (EGR) Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intake manifold. Refer to: Intake Manifold .

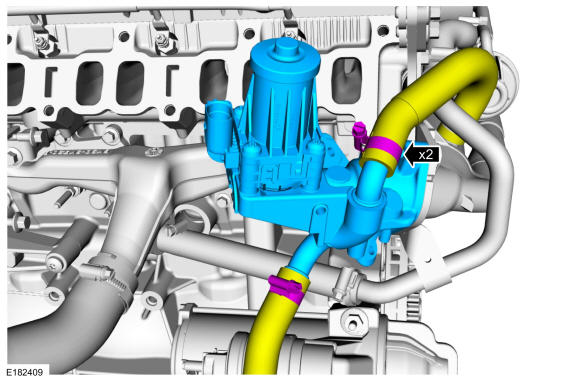

  2. Disconnect the EGR valve coolant hoses and remove the EGR valve.
GFD310142Courtesy of FORD MOTOR COMPANY
