Engine Emission Control - Component Location
WARNING: This page is about a different variant/trim than selected.

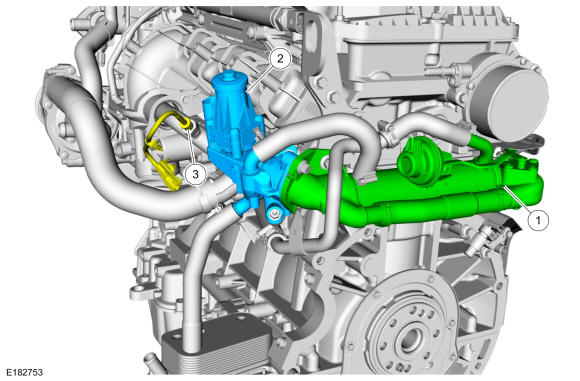

3.2L Duratorq TDCi Puma
| Item | Part Number | Description |
|---|---|---|
| 1 | 9U443 | EGR (exhaust gas recirculation) cooler |
| 2 | 9D475 | EGR (exhaust gas recirculation) valve |
| 3 | 12B591 | EGR (exhaust gas recirculation) temperature sensor bank 1 sensor 2 |

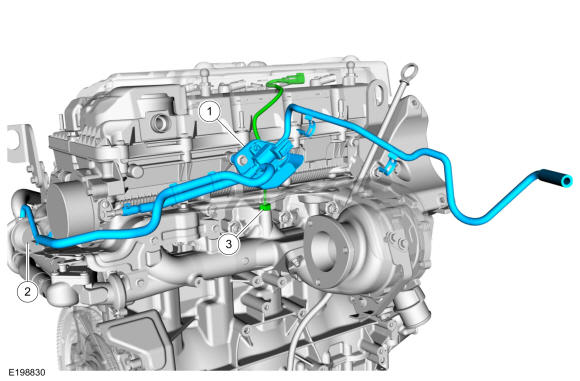

3.2L Duratorq TDCi Puma
| Item | Part Number | Description |
|---|---|---|
| 1 | 9S468 | Emission system control hose and bracket assembly |
| 2 | -- | EGR (exhaust gas recirculation) cooler activator (part of 9U433) |
| 3 | 12B591 | EGRT sensor 11 |

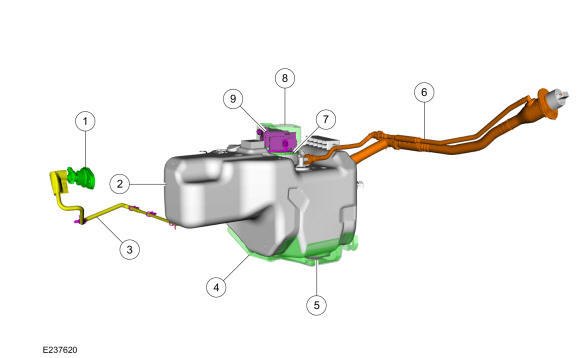

Reductant System
| Item | Part Number | Description |
|---|---|---|
| 1 | 5J281 | Reductant injector |
| 2 | 5L227 | Reductant tank |
| 3 | 5J249 | Reductant pressure line |
| 4 | 5J238 | Reductant tank bottom shield |
| 5 | -- | Reductant fluid quality module (Part of Reductant tank) (Part of 5L227) |
| 6 | 5J232 | Reductant tank filler hose |
| 7 | 5L227 | Reductant heater and sender assembly |
| 8 | 0049 | Reductant pump assembly cover |
| 9 | 5L227 | Reductant pump (part of 5J228) |
