Glow Plugs: Installation
WARNING: This page is about a different variant/trim than selected.

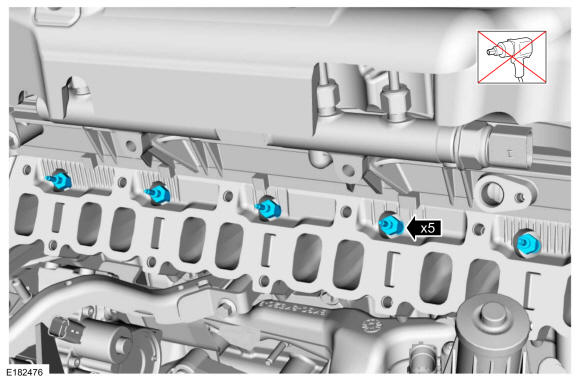

- Install and tighten the glow plugs.
Torque: 115 lb.in (13 Nm)

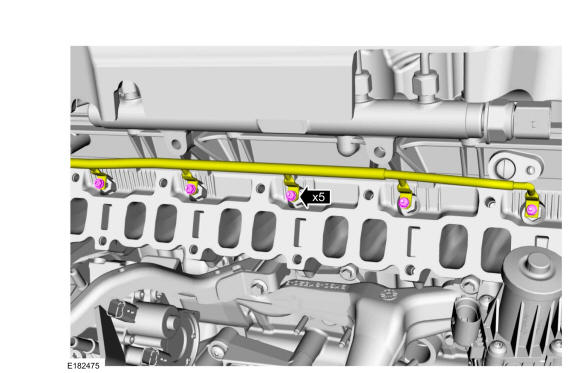

- Install the glow plug wire harness and tighten the glow plug wire harness nuts finger tight at this stage.
Torque: Stage 1: 9 lb.in (1 Nm) Stage 2: 21 lb.in (2.4 Nm)
- Install the intake manifold. Refer to: Intake Manifold .
