Glow Plug Relay: Installation
WARNING: This page is about a different variant/trim than selected.

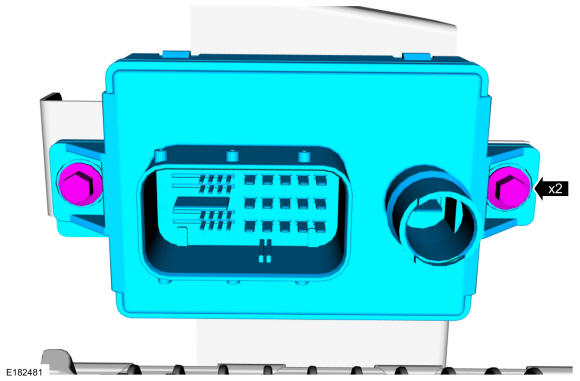

- Install the glow plug relay and the glow plug relay bolts. Tighten the glow plug relay bolts.
Torque: 93 lb.in (10.5 Nm)
-
NOTE: Do not use dielectric compound or any other type of lubricant or grease on the glow plug relay connectors. Such material can migrate into the glow plug relay causing damage.

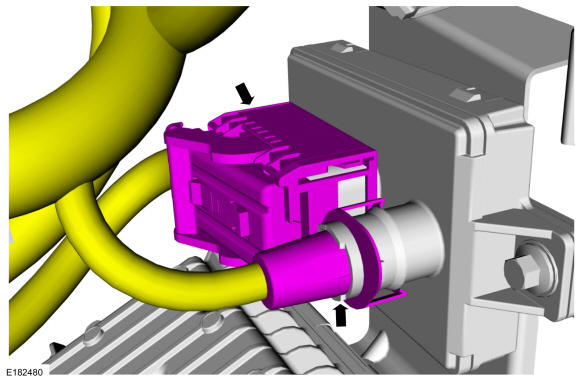

Connect the glow plug relay electrical connectors.

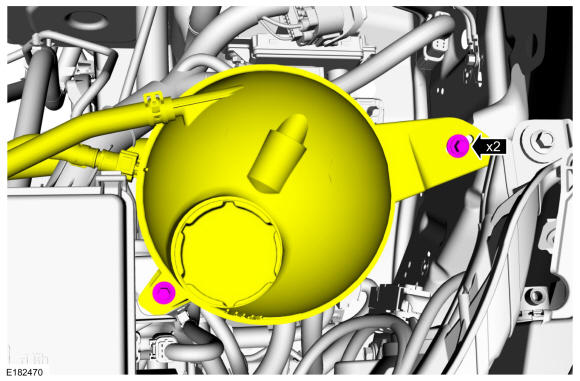

- Install the coolant reservoir tank and install the coolant reservoir tank bolts. Tighten the coolant reservoir tank bolts.
Torque: 71 lb.in (8 Nm)
