Throttle Body: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Detach the CAC temperature sensor wire harness retainer and then disconnect the CAC temperature sensor electrical connector.
    GFD309812Courtesy of FORD MOTOR COMPANY
  3. Loosen the clamps and then remove the throttle body inlet tube.
    GFD309813Courtesy of FORD MOTOR COMPANY
  4. Remove the wiring harness retaining bolt.
    GFD309814Courtesy of FORD MOTOR COMPANY

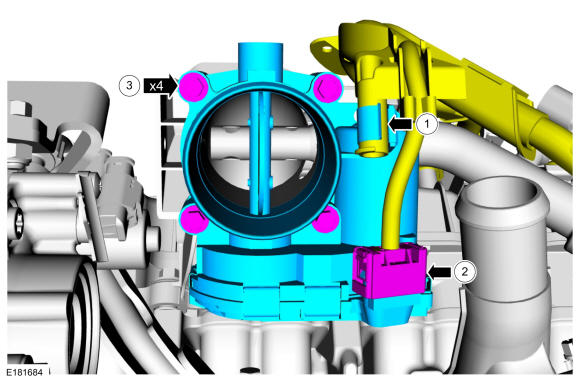

    1. Detach the throttle body wire harness retainer.
    2. Disconnect the throttle body electrical connector
    3. Remove the throttle body retaining bolts and then remove the throttle body.
    GFD309815Courtesy of FORD MOTOR COMPANY

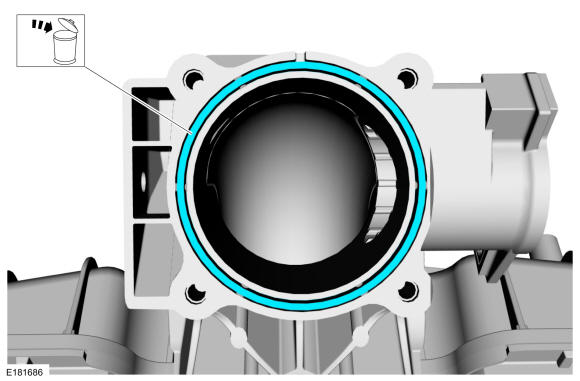

  6. Remove and discard the throttle body gasket.
GFD309816Courtesy of FORD MOTOR COMPANY
