Fuel Metering Valve: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
  3. Remove the throttle body. Refer to: Throttle Body .
  4. Disconnect the fuel injection pump temperature sensor and the fuel injection pump fuel metering valve electrical connectors.
    GFD309766Courtesy of FORD MOTOR COMPANY
    1. Remove the fuel injection pump temperature sensor mounting bolt.
    2. Remove the fuel injection pump temperature sensor.
    3. Remove the fuel injection pump fuel metering valve bolts.
    4. Remove the fuel injection pump fuel metering valve.

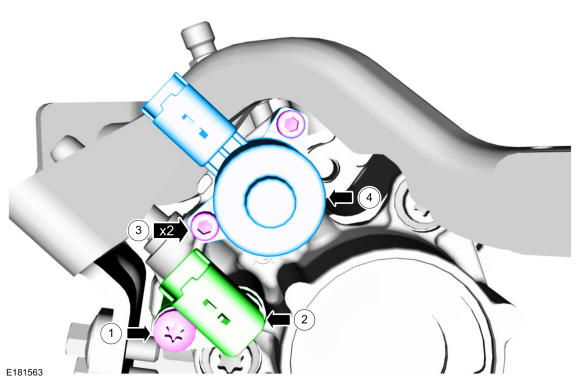

GFD309796Courtesy of FORD MOTOR COMPANY
