Fuel Injection Pump: Installation

WARNING: This page is about a different variant/trim than selected.

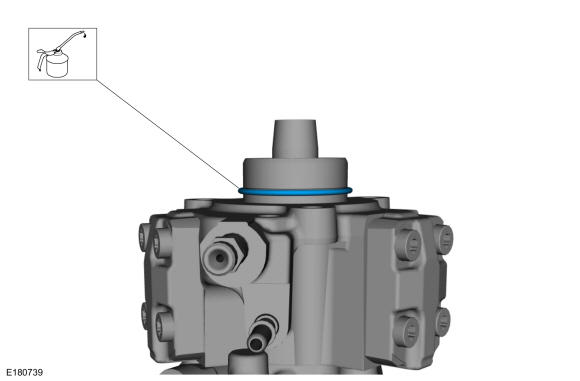

  1. Install the new the fuel injection pump O-ring seal and lubricate with clean engine oil. Refer to: Specifications .
    GFD309783Courtesy of FORD MOTOR COMPANY

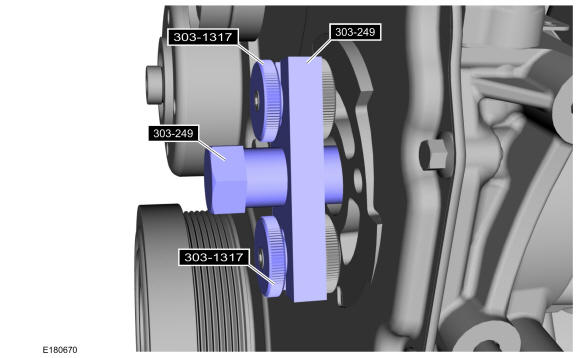

  2. Remove the Remover, Crankshaft Timing Pulley and the outer thumb-wheels only. Remove Special Service Tool: 303-249 Remover, Crankshaft Timing Pulley, 303-1317 Locking Tool, Fuel Injection Pump Sprocket.
    GFD309779Courtesy of FORD MOTOR COMPANY
  3. Align the sprocket key with the keyway on the fuel injection pump shaft and install the fuel injection pump, then install and tighten the fuel injection pump studbolts.

    Torque: 17 lb.ft (23 Nm)

    GFD309784Courtesy of FORD MOTOR COMPANY

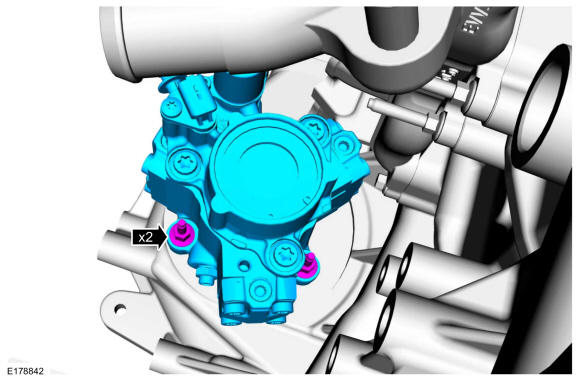

  4. NOTE: The fuel injection pump drive sprocket retaining bolt has LEFT hand threads.

    Install and tighten the fuel injection pump drive sprocket retaining bolt. When tightening the LEFT hand threaded fuel pump drive sprocket bolt, the locking tool may rotate to its stop, carefully continue to tighten the fuel pump drive sprocket bolt until the specified torque is reached.

    Torque: 55 lb.ft (75 Nm)

    GFD309785Courtesy of FORD MOTOR COMPANY

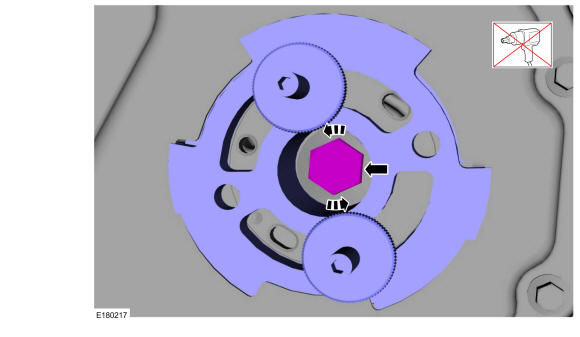

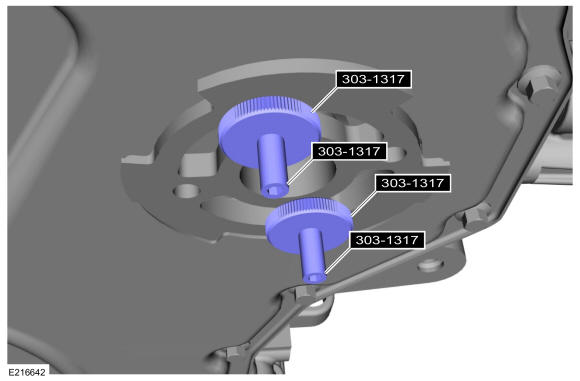

  5. Remove the studs and the inner thumb-wheels. Remove Special Service Tool: 303-1317 Locking Tool, Fuel Injection Pump Sprocket.
    GFD309775Courtesy of FORD MOTOR COMPANY
  6. Remove the Locking Tool, Fuel Injection Pump Sprocket. Remove Special Service Tool: 303-1317 Locking Tool, Fuel Injection Pump Sprocket.
    GFD309786Courtesy of FORD MOTOR COMPANY

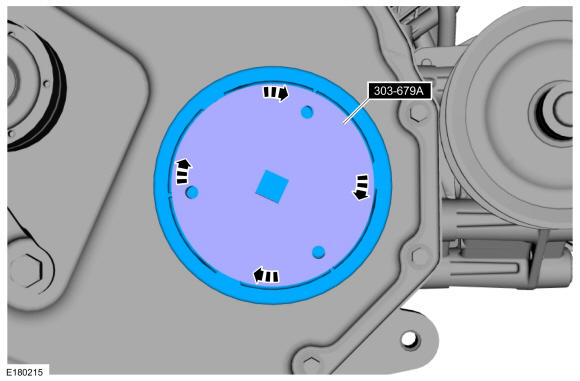

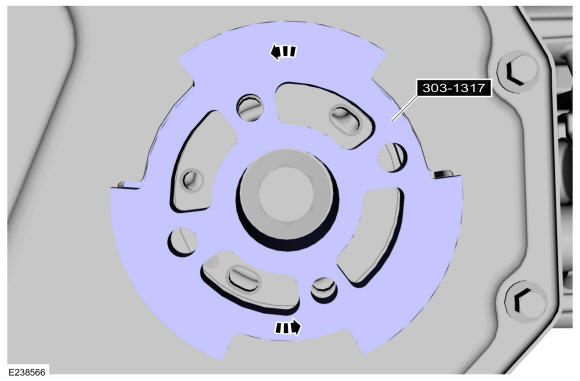

  7. Using the special tool Remover/Installer, Engine Front Cover Inspection Plate, install the fuel injection pump drive sprocket access cover. Use Special Service Tool: 303-679A Remover/Installer, Engine Front Cover Inspection Plate.
    GFD309787Courtesy of FORD MOTOR COMPANY
  8. Install the upper RH fuel injection pump bracket and the upper RH fuel injection pump bracket tube nut finger tight at this stage.
    GFD309772Courtesy of FORD MOTOR COMPANY

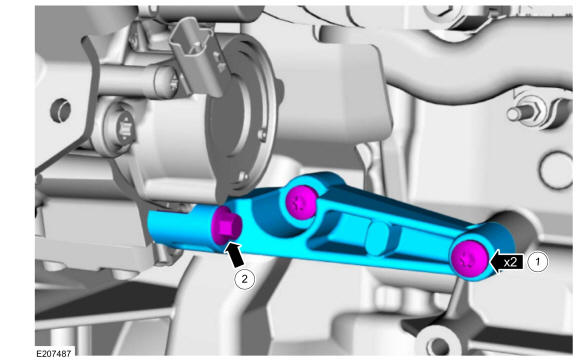

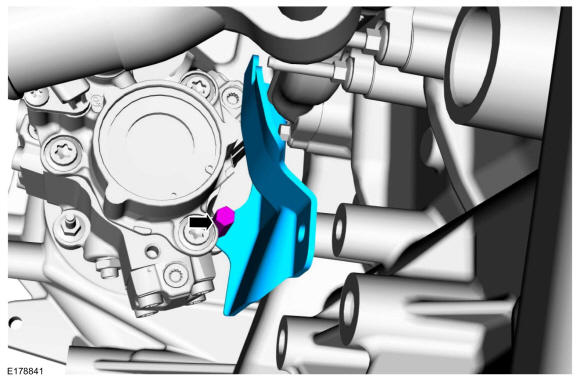

    1. Install the lower RH fuel injection pump bracket and then install lower RH fuel injection pump bracket bolts.
    2. NOTE: Make sure that a new lower RH fuel injection pump bracket bolt is installed.

      Install the lower RH fuel injection pump bracket bolt.

    GFD309788Courtesy of FORD MOTOR COMPANY

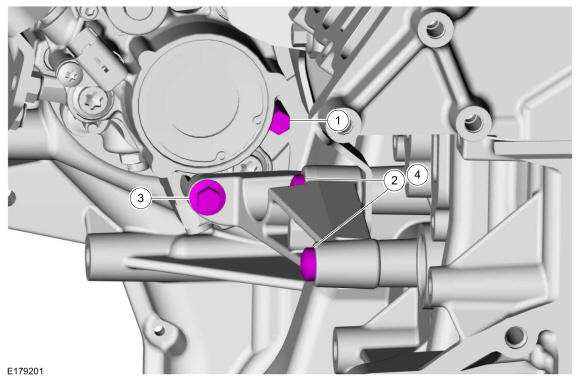

  9. Tighten the upper RH fuel injection pump bracket tube nut and the lower RH fuel injection pump bracket bolts in the sequence shown.

    Torque: 1 : 89 lb.in (10 Nm) 2 : 17 lb.ft (23 Nm) 3 : 17 lb.ft (23 Nm) 4 : 17 lb.ft (23 Nm)

    GFD309789Courtesy of FORD MOTOR COMPANY
    1. Install the upper LH fuel injection pump bracket and the upper LH fuel injection pump bracket bolt.
    2. NOTE: Make sure that a new upper LH fuel injection pump bracket bolt is installed.

      Install the upper LH fuel injection pump bracket bolt.

    GFD309790Courtesy of FORD MOTOR COMPANY

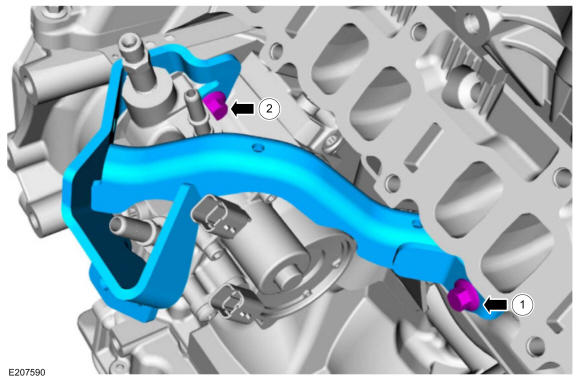

  10. Install the lower LH fuel injection pump bracket, the lower LH fuel injection pump bracket bolts and the lower LH fuel injection pump bracket tube nut finger tight at this stage.
    GFD309791Courtesy of FORD MOTOR COMPANY

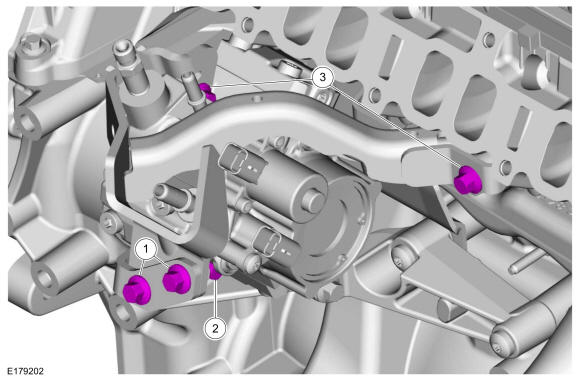

  11. Tighten the fuel injection pump bracket tube nut and the fuel injection pump bracket bolts in the sequence shown.

    Torque: 1: 16 lb.ft (22 Nm) 2: 89 lb.in (10 Nm) 3: 16 lb.ft (22 Nm)

    GFD309792Courtesy of FORD MOTOR COMPANY

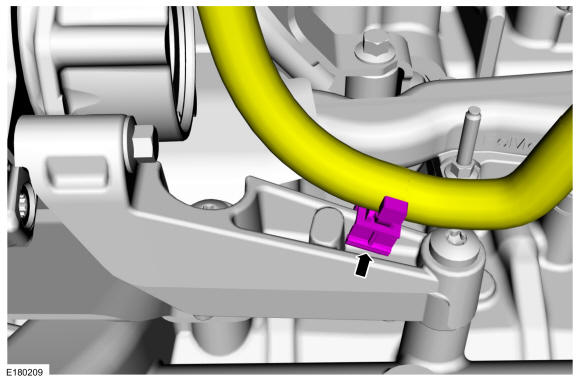

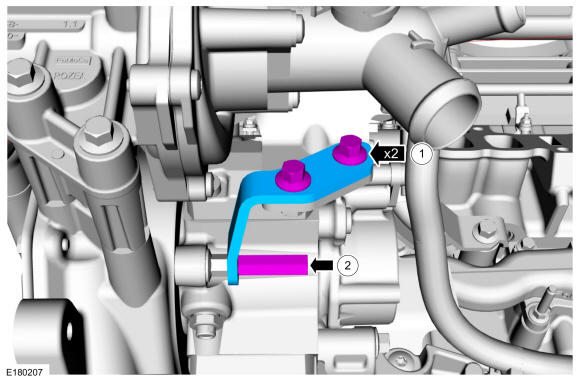

  12. Attach the harness retainer to the bracket.
    GFD309770Courtesy of FORD MOTOR COMPANY
    1. Install and tighten the thermostat housing bracket bolt.

      Torque: 17 lb.ft (23 Nm)

    2. Install and tighten the thermostat housing bracket nut.

      Torque: 89 lb.in (10 Nm)

    • Connect the coolant hose and position the clamp. Use the General Equipment: Hose Clamp Remover/Installer

    GFD309767Courtesy of FORD MOTOR COMPANY

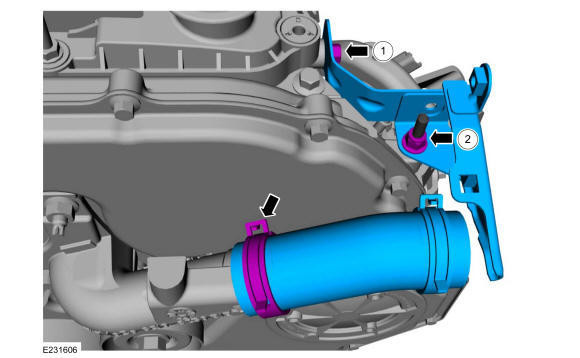

  13. Install the Coolant Pump. Refer to: Coolant Pump .
  14. Install the cooling fan. Refer to: Cooling Fan .

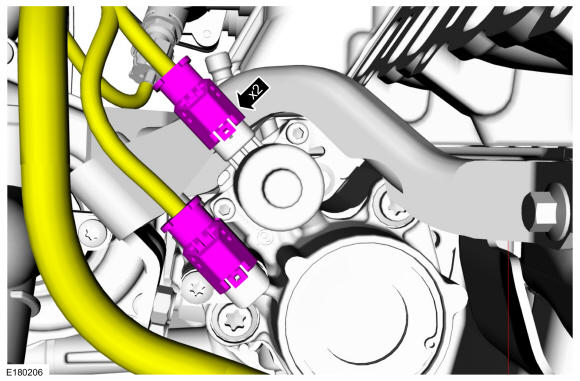

  15. Connect the fuel injection pump temperature sensor and the fuel injection pump fuel metering valve electrical connectors.
  16. Install the intake manifold. Refer to: Intake Manifold .
    GFD309766Courtesy of FORD MOTOR COMPANY
  17. Install the fuel rail supply tube. Refer to: Fuel Rail Supply Tube .
