Removal And Installation: Thermostat: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
-
NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the screws.

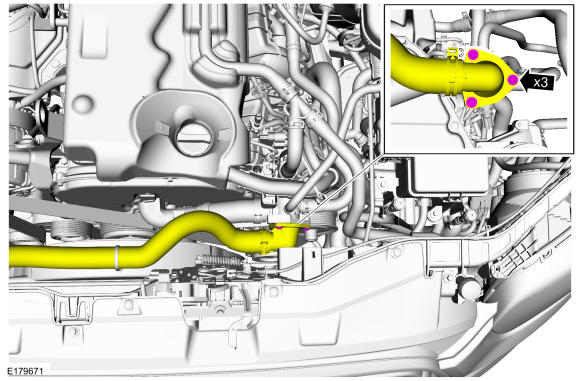

Remove the screws and detach the coolant inlet connector.
Torque: 44 lb.in (5 Nm)

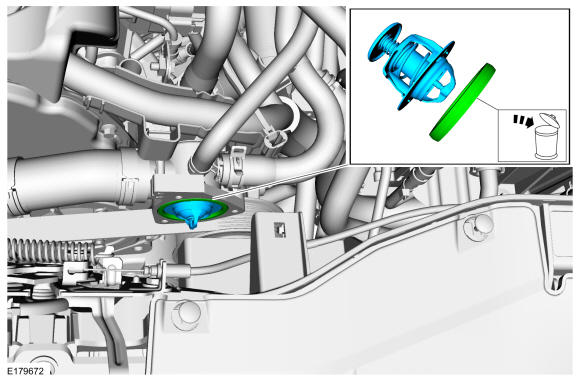

- Remove the thermostat and discard the O-ring seal.
