Radiator Lower Hose: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the LH headlamp assembly. Refer to: Headlamp Assembly .

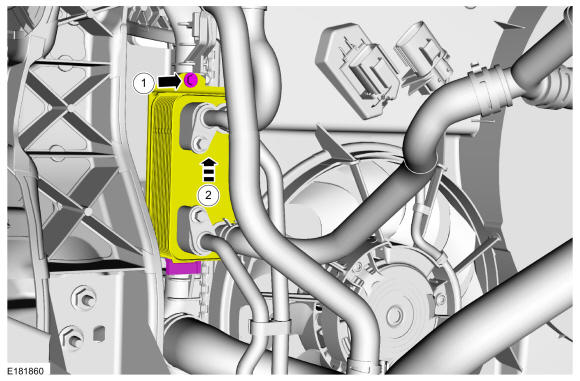

- Remove the bolt and position the transmission cooler upward to release it from the lower retainer.
Torque: 44 lb.in (5 Nm)

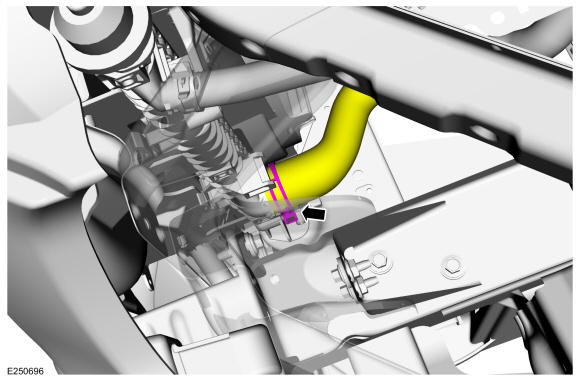

- Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

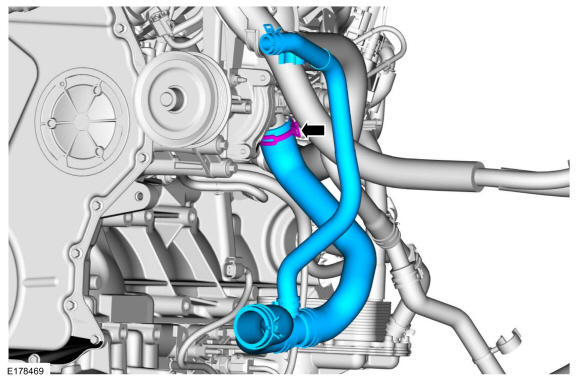

- Release the clamp disconnect the lower radiator hose from the upper radiator outlet. Use the General Equipment: Hose Clamp Remover/Installer

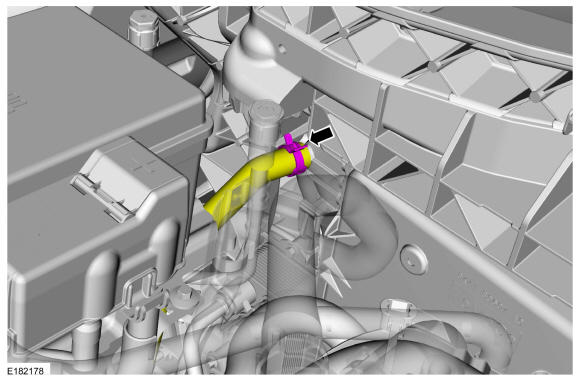

- Release the clamp and remove the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
