Cooling Module: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging .
Remove the engine driven cooling fan. Refer to: Cooling Fan .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Remove the CAC. Refer to: Charge Air Cooler (CAC) .

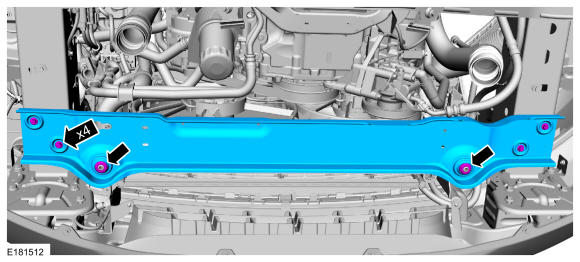

Position the lower support and install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

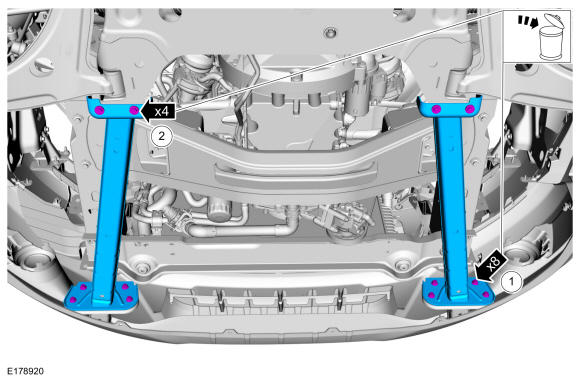

Remove and discard the lower load path bar retainers and remove the lower load path bars.
Torque: 1: 41 lb.ft (55 Nm) 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

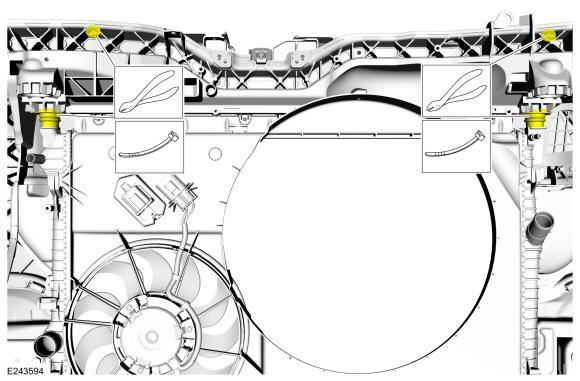

Cut the cable ties from the cooling module.

Courtesy of FORD MOTOR COMPANY
NOTE: A crowfoot wrench may be needed to access the lower A/C line nut.

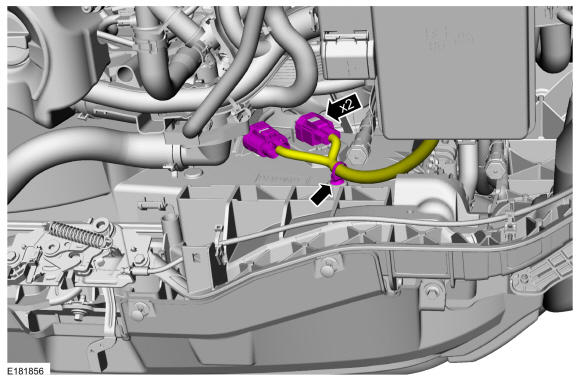

Disconnect the electrical connector and remove the A/C lines from the condenser.

Torque: 1: 133 lb.in (15 Nm) 2: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

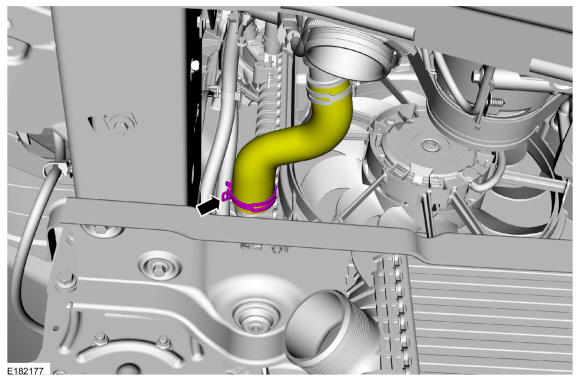

Disconnect the lower radiator hose.

Courtesy of FORD MOTOR COMPANY

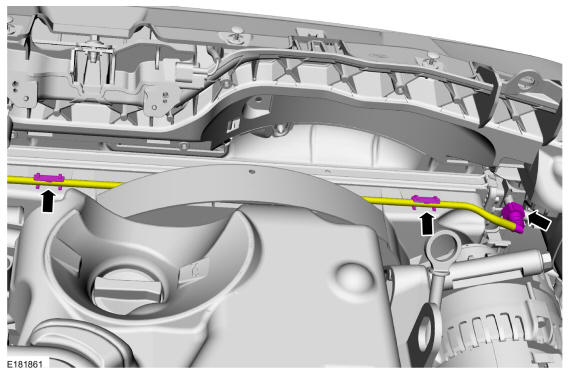

Disconnect the cooling fan motor and shroud electrical connectors and remove the push pin.

Courtesy of FORD MOTOR COMPANY

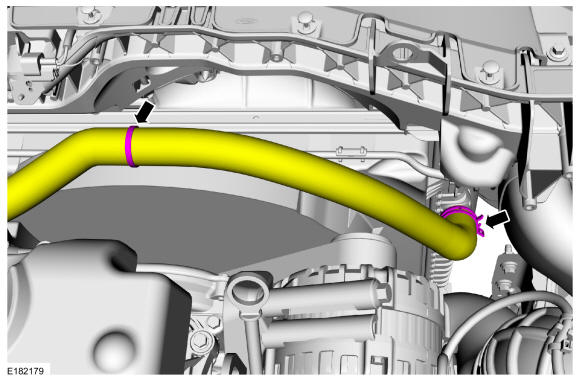

Disconnect the upper radiator hose and remove the push pin from the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY
Disconnect and remove the degas bottle coolant tube from the cooling fan shroud.

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission cooler hose.

Courtesy of FORD MOTOR COMPANY

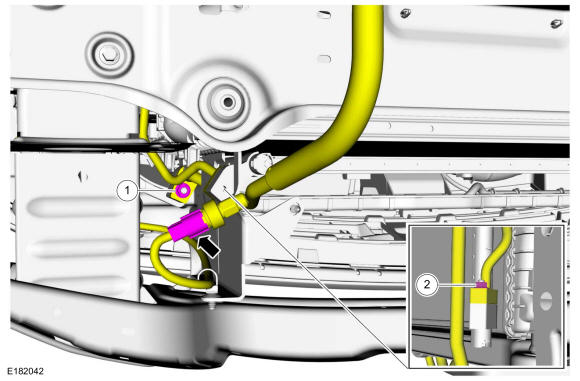

Remove the bolt and position the transmission cooler upward to release it from the lower retainer.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

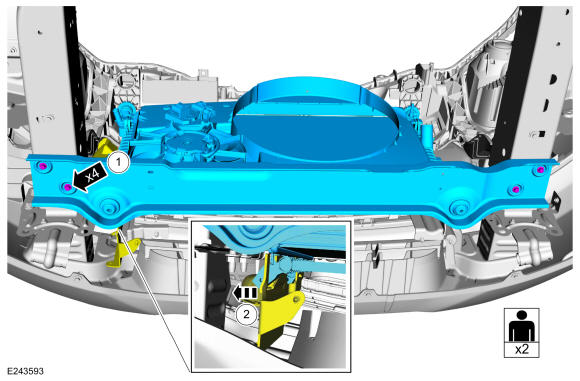

1. Remove the bolts
  Torque: 18 lb.ft (25 Nm)
2. Position the air deflector from under the A/C condenser prior to lowering the cooling module.
  Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
