Cooling Fan: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The component has a right-hand thread.

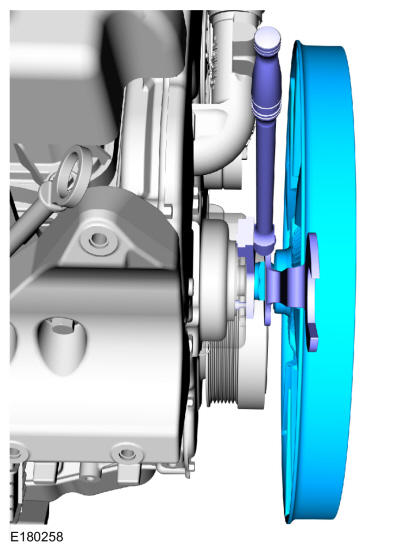

Using the special tool and a commercially available fan clutch wrench remove the cooling fan. Use Special Service Tool: 303-1561 Holding Wrench, Pulley.

Torque: 77 lb.ft (105 Nm)

Courtesy of FORD MOTOR COMPANY
