Coolant Pump: Removal

WARNING: This page is about a different variant/trim than selected.

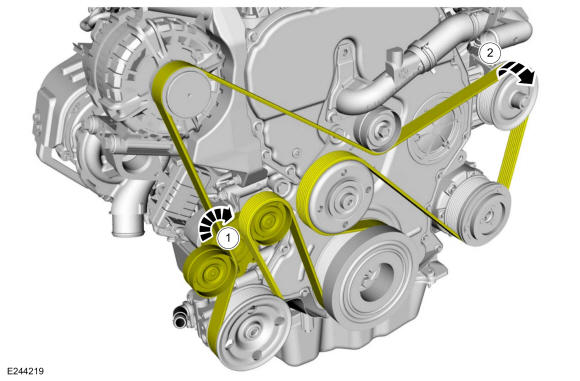

    1. Rotate the accessory drive belt tensioner clockwise.
    2. Position the accessory drive belt aside.
    GFD309641Courtesy of FORD MOTOR COMPANY
  2. Remove the thermostat housing. Refer to: Thermostat Housing .
  3. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD309642Courtesy of FORD MOTOR COMPANY
  4. Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD309643Courtesy of FORD MOTOR COMPANY

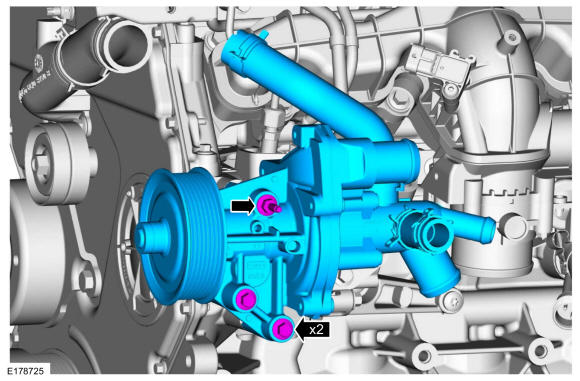

  5. Remove the bolts, stud bolt and the coolant pump.
GFD309644Courtesy of FORD MOTOR COMPANY
