Coolant Pump: Installation

WARNING: This page is about a different variant/trim than selected.

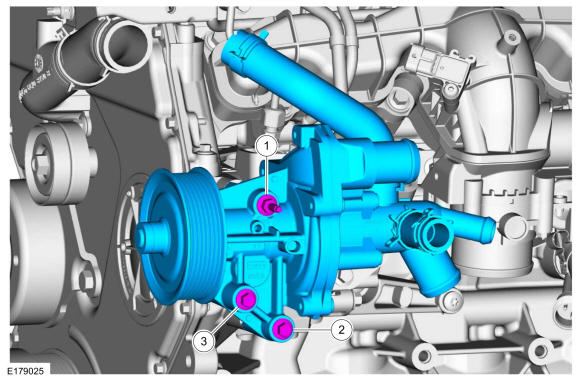

Install the coolant pump and tighten the bolts and stud bolt in the sequence shown.
Torque: 17 lb.ft (23 Nm)

Fig 1: Coolant Pump Tightening Sequence
Courtesy of FORD MOTOR COMPANY

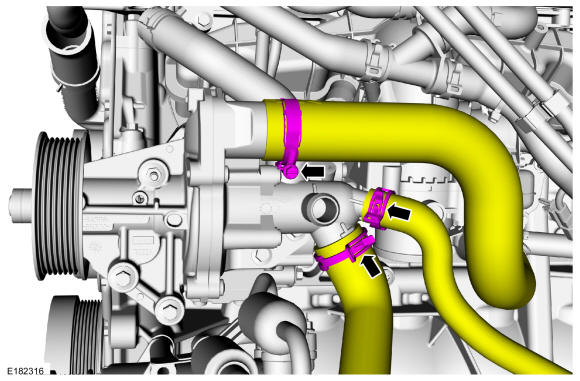

Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

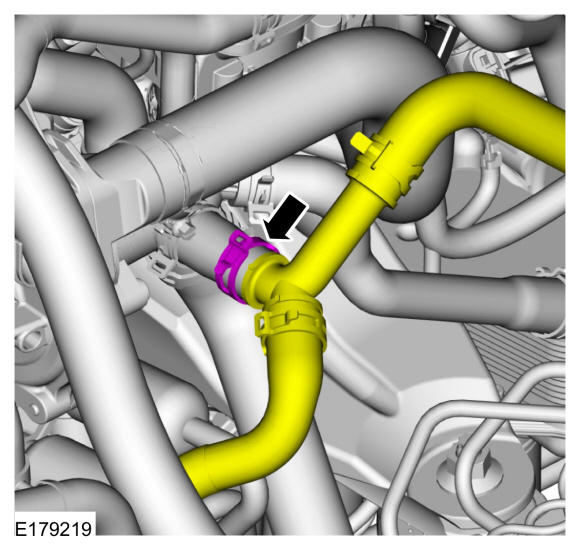

Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Install the thermostat housing. Refer to: Thermostat Housing .

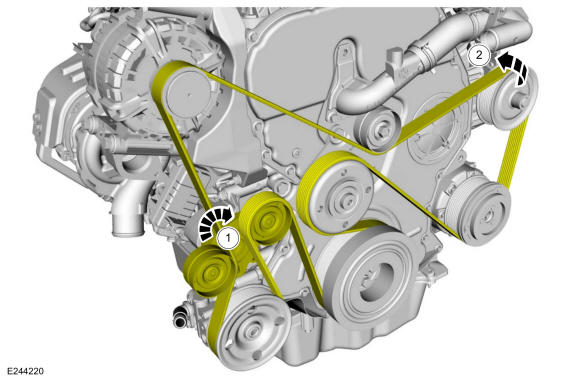

1. Rotate the accessory drive belt tensioner clockwise.
2. Position the accessory drive belt.

Courtesy of FORD MOTOR COMPANY
