Coolant Manifold: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel injection pump. Refer to: Fuel Injection Pump .
  2. Remove the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD309636Courtesy of FORD MOTOR COMPANY
  3. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD309637Courtesy of FORD MOTOR COMPANY

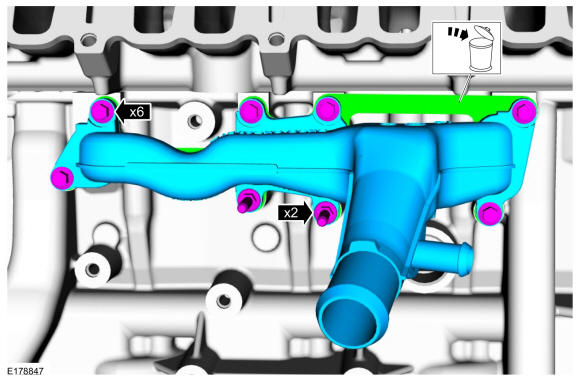

  4. Remove the bolts and the coolant manifold. Discard the gasket.
GFD309638Courtesy of FORD MOTOR COMPANY
