Coolant Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

Using a new gasket, install the coolant manifold and bolts. Tighten in the sequence shown in 2 stages.
Torque: Stage 1: 89 lb.in (10 Nm) Stage 2: 89 lb.in (10 Nm)

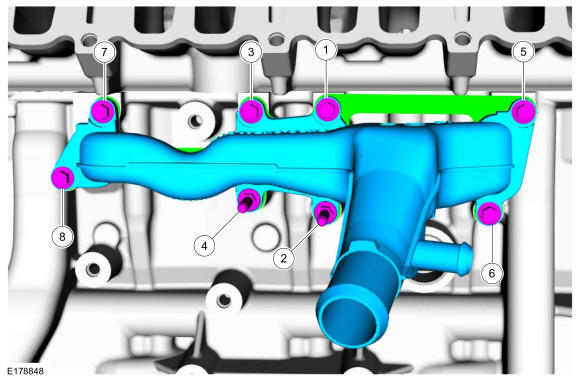

Fig 1: Coolant Manifold Tightening Sequence
Courtesy of FORD MOTOR COMPANY

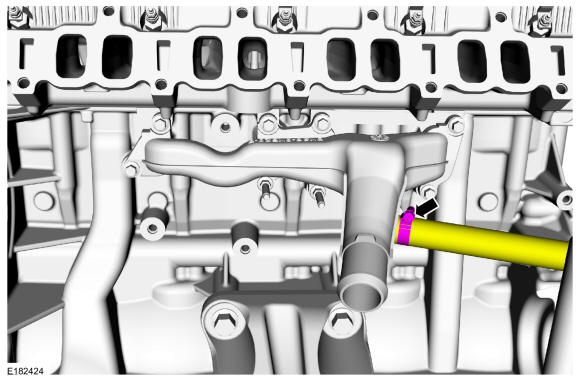

Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 33 lb.in (3.7 Nm)

Courtesy of FORD MOTOR COMPANY

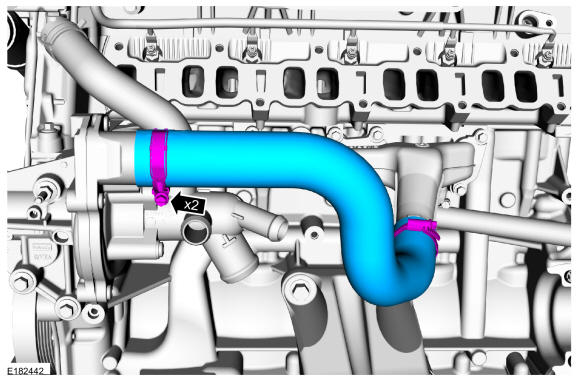

Install the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 33 lb.in (3.7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the fuel injection pump. Refer to: Fuel Injection Pump .
