Without rear heat
WARNING: This page is about a different variant/trim than selected.

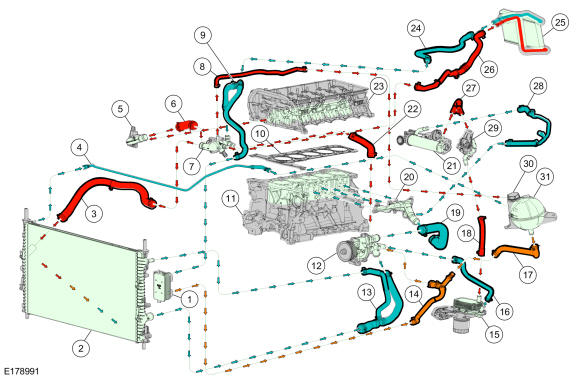

| Item | Description |
|---|---|
| 1 | Transmission oil cooler |
| 2 | Radiator |
| 3 | Upper radiator hose |
| 4 | Radiator air aspirator hose |
| 5 | Cylinder head outlet connection |
| 6 | Coolant outlet hose |
| 7 | Thermostat housing |
| 8 | Air aspirator hose |
| 9 | Transmission oil cooler inlet hose |
| 10 | Cylinder head gasket |
| 11 | Cylinder block |
| 12 | Coolant pump |
| 13 | Lower radiator hose |
| 14 | Transmission oil cooler outlet hose |
| 15 | Oil filter adapter and cooler |
| 16 | Coolant outlet hose |
| 17 | Engine coolant reservoir hose |
| 18 | Engine oil cooler hose |
| 19 | Coolant pump outlet to coolant manifold hose |
| 20 | Coolant manifold |
| 21 | EGR cooler |
| 22 | Coolant bypass hose |
| 23 | Cylinder head |
| 24 | Heater outlet hose |
| 25 | Heater core |
| 26 | Heater inlet hose |
| 27 | EGR cooler outlet hose |
| 28 | EGR cooler inlet hose |
| 29 | EGR valve |
| 30 | Pressure relief cap |
| 31 | Degas bottle |
