Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the oil pan. Refer to: Oil Pan .
  2. Remove the bolts and the oil pickup tube.
    GFD307916Courtesy of FORD MOTOR COMPANY

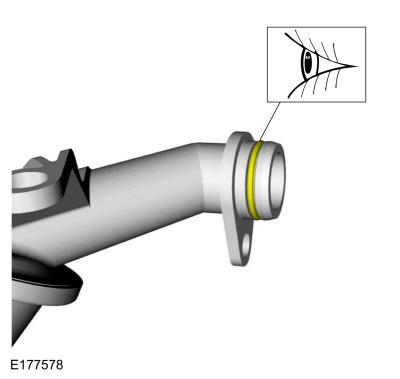

  3. Inspect the O-ring.
    GFD307917Courtesy of FORD MOTOR COMPANY
  4. Remove the oil feedback pipe.
    GFD307918Courtesy of FORD MOTOR COMPANY

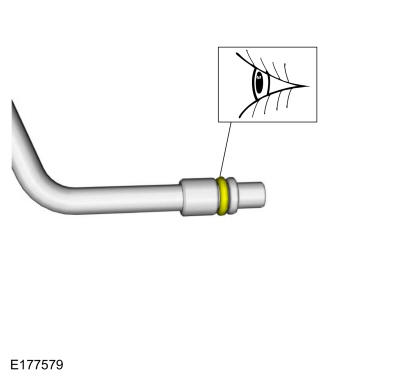

  5. Inspect the O-ring.
    GFD307919Courtesy of FORD MOTOR COMPANY

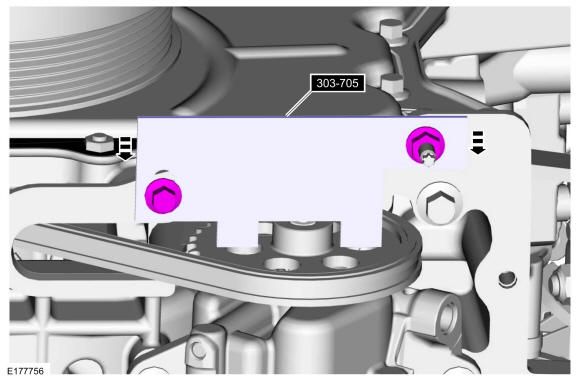

  6. Install the special tool to the engine block and finger tighten the nut and bolt. Push the special tool against the oil pump sprocket. Tighten the nut and bolt. Install Special Service Tool: 303-705 Aligner, Oil Pump.
    GFD307920Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts for the oil pump. Position out the oil pump.
    GFD307921Courtesy of FORD MOTOR COMPANY

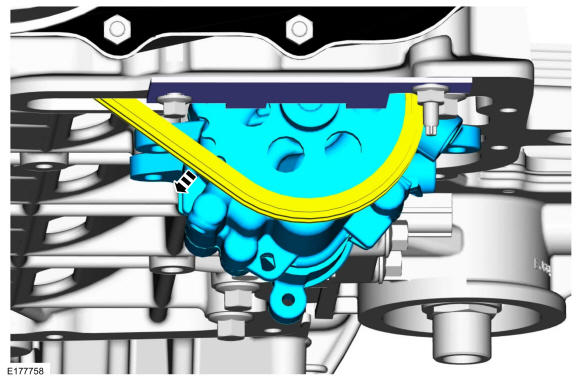

  8. Position aside the oil pump chain and remove the oil pump.
GFD307922Courtesy of FORD MOTOR COMPANY
