Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

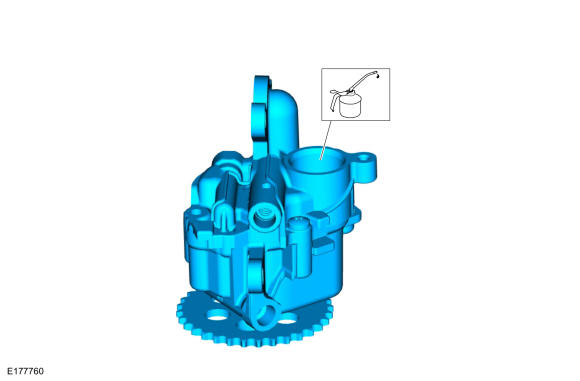

NOTE: Do this step only if the oil pump has been replaced.
- Fill the inlet with clean engine oil until it is brimmed.
  Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)
- With the oil pump still vertical, rotate the oil pump sprocket 10 times in either direction.
- Empty the excess oil from the oil pump.
Courtesy of FORD MOTOR COMPANY

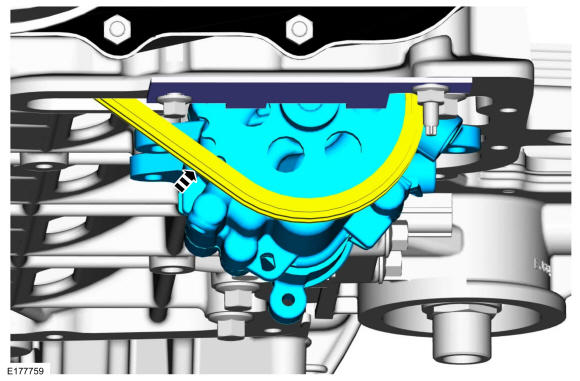

Position back the oil pump chain and install the oil pump.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

NOTE: The profile of the special tool must be in contact with the oil pump sprocket.

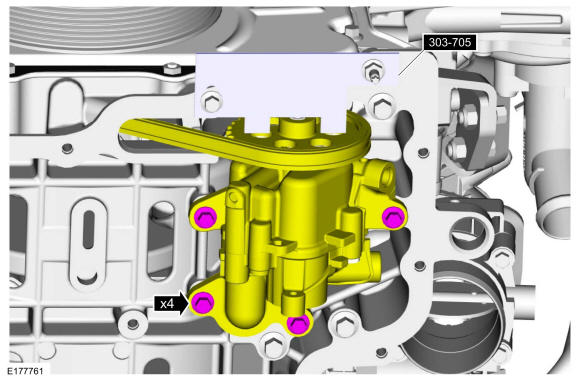

Install the bolts for the oil pump and align to the special tool.

Courtesy of FORD MOTOR COMPANY

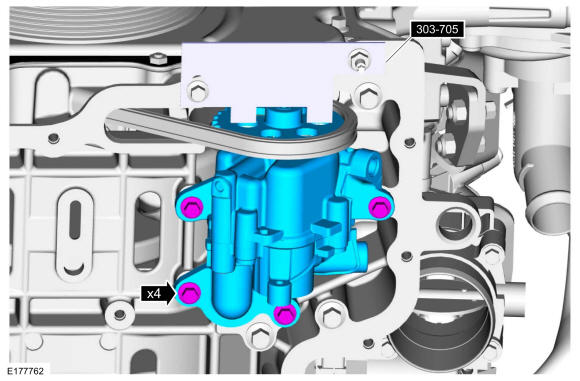

Tighten the bolts for the oil pump.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

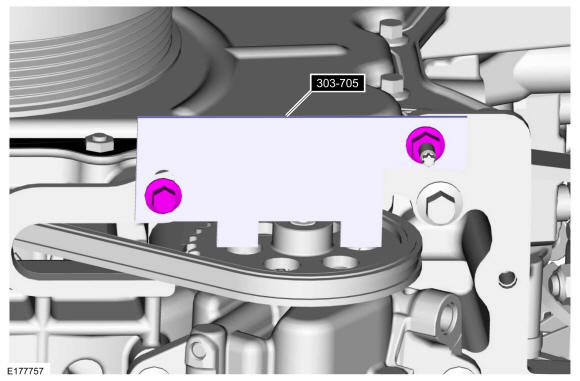

Remove Special Service Tool: 303-705 Aligner, Oil Pump.

Courtesy of FORD MOTOR COMPANY

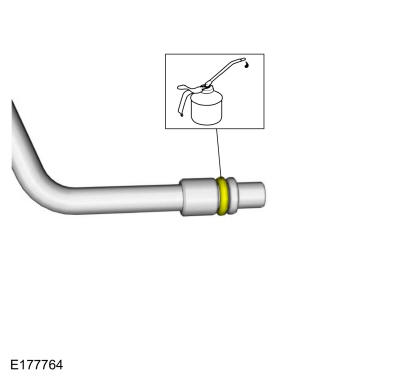

Lubricate the O-ring with clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

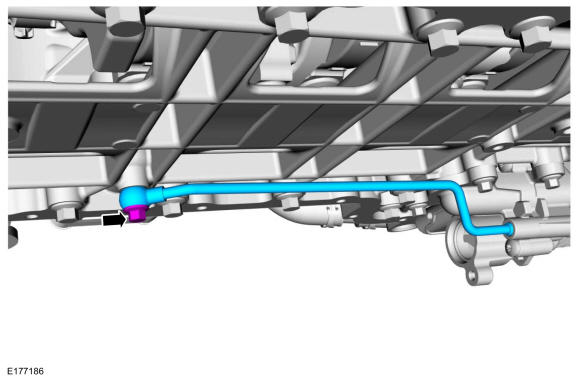

Install the oil feedback pipe.
Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

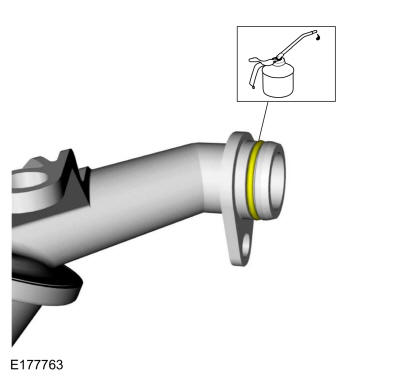

Lubricate the O-ring with clean engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

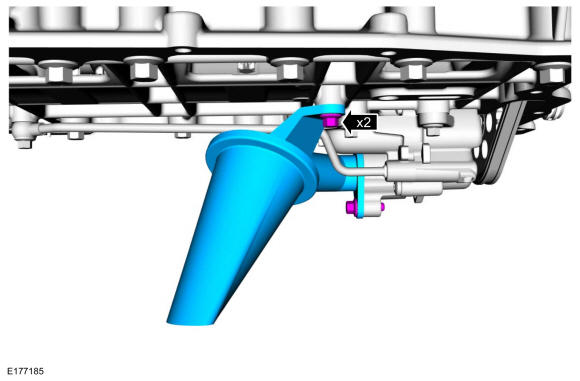

Install the oil pickup tube and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan. Refer to: Oil Pan .
