Oil Pressure Switch: Installation

WARNING: This page is about a different variant/trim than selected.

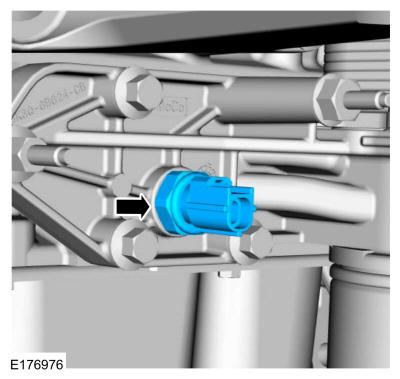

  1. Install the oil pressure switch.

    Torque: 177 lb.in (20 Nm)

    GFD307914Courtesy of FORD MOTOR COMPANY

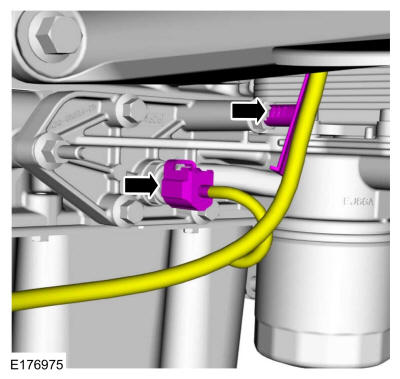

  2. Connect the electrical connector and wire retainer.
GFD307912Courtesy of FORD MOTOR COMPANY
