Oil Pan: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

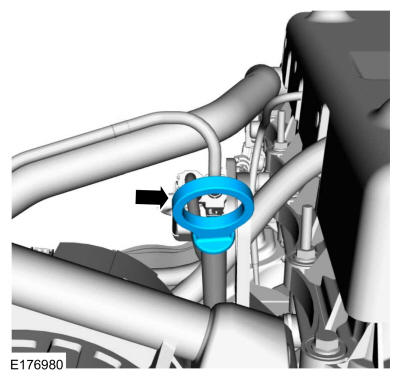

- Remove the oil level indicator.
- Remove the CAC. Refer to: Charge Air Cooler (CAC) .

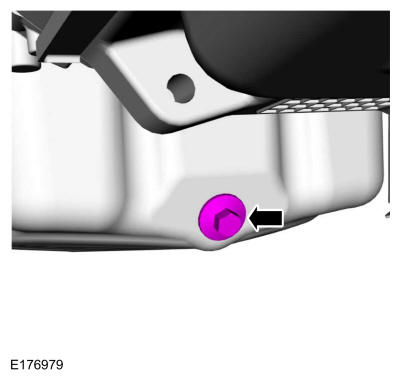

- Drain the engine oil.
Torque: 29 lb.ft (39 Nm)

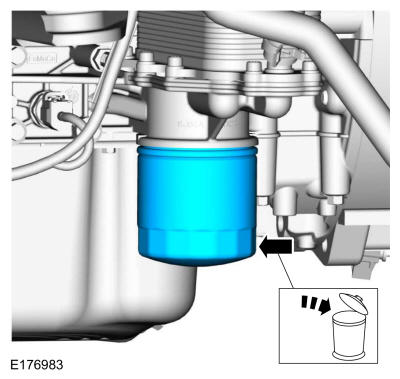

- Remove and discard the oil filter.

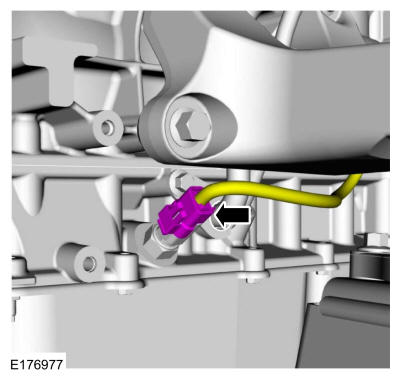

- Disconnect the oil level sensor electrical connector.

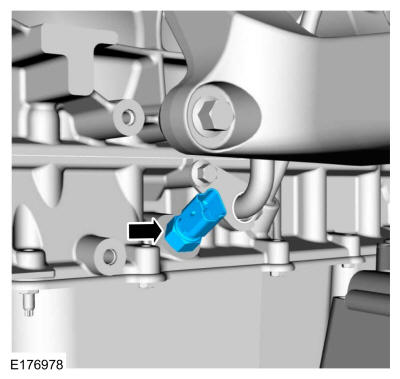

- Remove the oil level sensor.

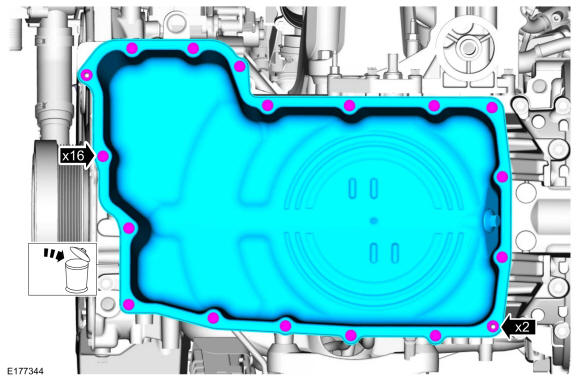

- Remove the nuts and bolts. Remove and discard the oil pan.

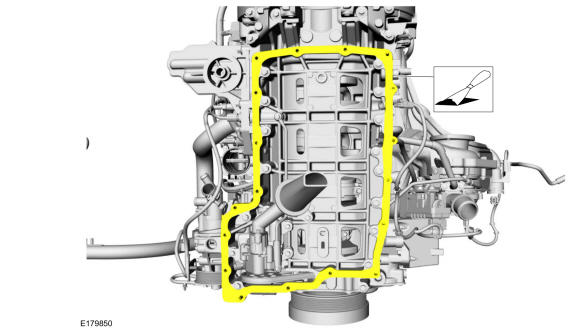

- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
