Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

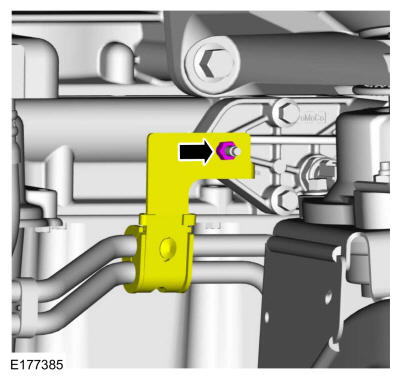

- Remove the nut and position aside the bracket.

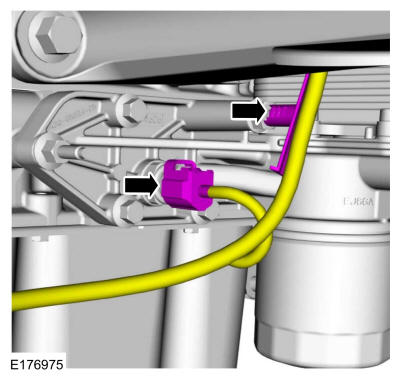

- Disconnect the electrical connector and the wire retainer.

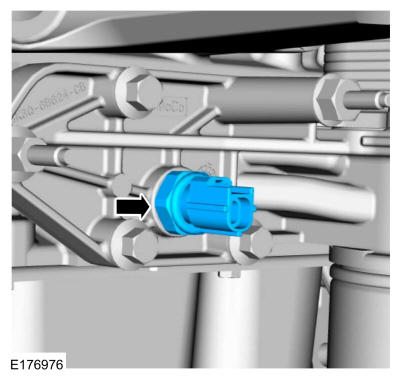

- If necessary, remove the oil pressure switch.
- Remove and discard the oil filter.

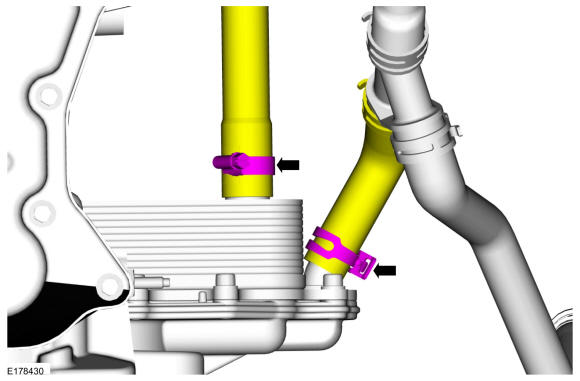

- Disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

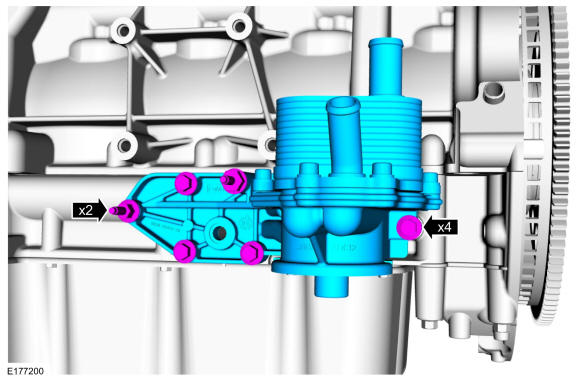

- Remove the bolts, stud bolts and the oil cooler.

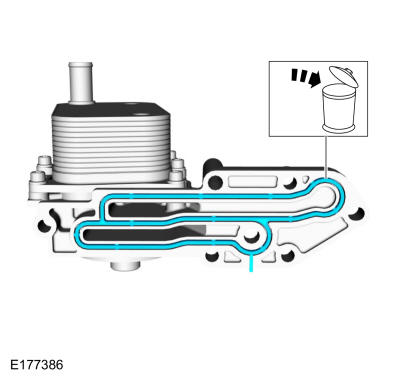

- Remove and discard the oil cooler gasket.
