Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the mating surfaces are clean and free of foreign materials.

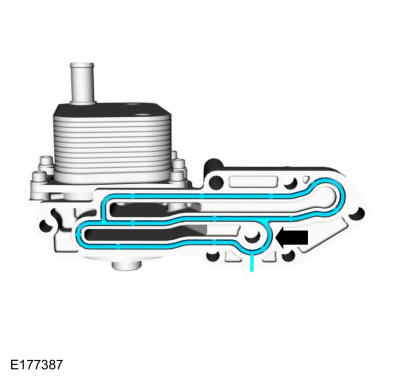

Install the new oil cooler gasket.

Courtesy of FORD MOTOR COMPANY

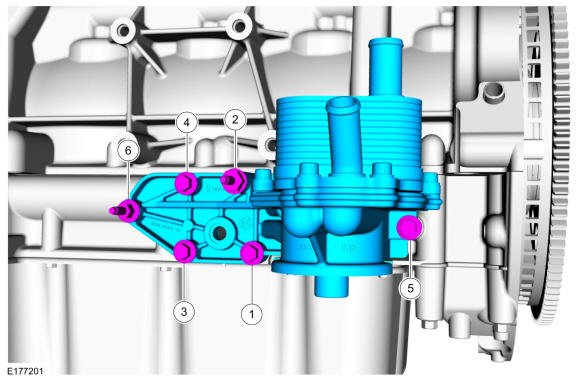

Install the oil cooler, stud bolts and bolts.
Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 17 lb.ft (23 Nm) Stage 3: 17 lb.ft (23 Nm)

Fig 1: Oil Cooler Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Connect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the oil filter.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pressure switch is to be reused, apply thread sealant.

If necessary, install the oil pressure switch.

Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY
Position back the bracket and install the nut.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Check and top off the engine oil.
Material: Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil / XO-5W40-5Q3SD (WSS-M2C171-F1)
