Exhaust Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the turbocharger. Refer to: Turbocharger .
Remove the generator. Refer to: Generator - 3.2L Duratorq-TDCi (148kW/200PS) - Puma .

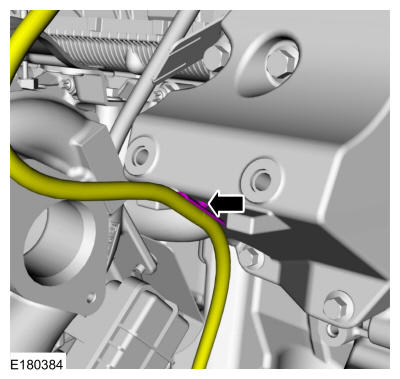

Disconnect the wire retainer from the generator bracket.

Courtesy of FORD MOTOR COMPANY

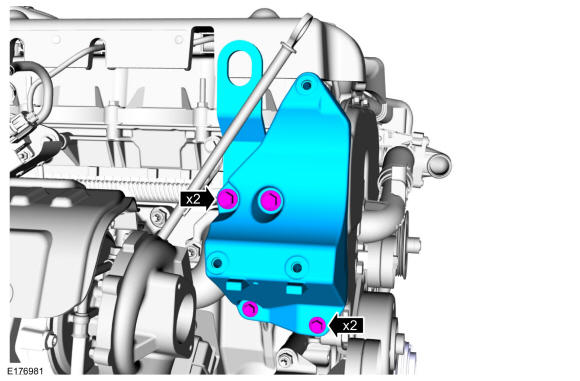

Remove the bolts, lifting bracket and generator bracket.

Courtesy of FORD MOTOR COMPANY

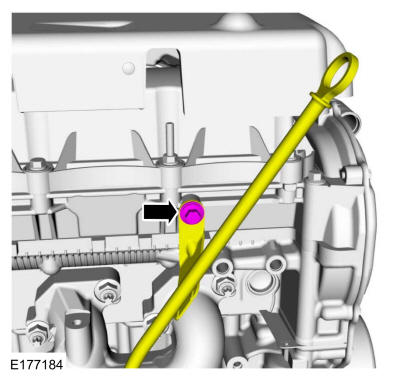

Remove the bolt and position aside the oil level indicator.

Courtesy of FORD MOTOR COMPANY

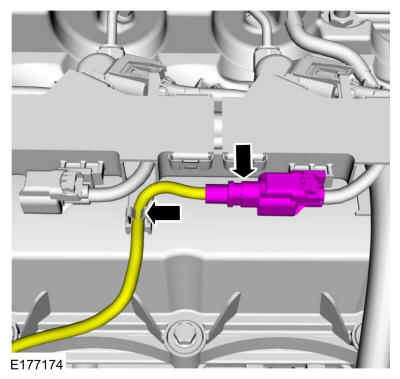

Disconnect the electrical connector and wire retainer.

Courtesy of FORD MOTOR COMPANY

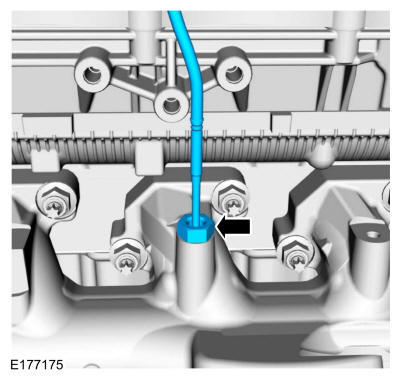

If necessary, remove the EGRT sensor 11.

Courtesy of FORD MOTOR COMPANY

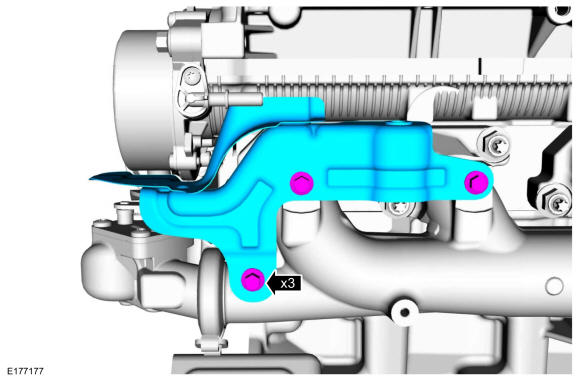

Remove the bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY

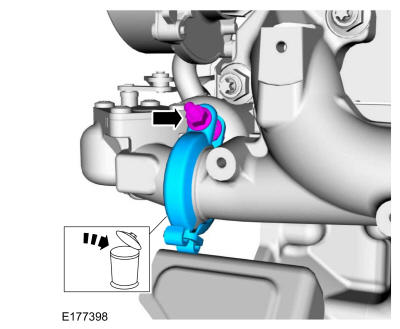

Remove and discard the EGR cooler clamp.

Courtesy of FORD MOTOR COMPANY

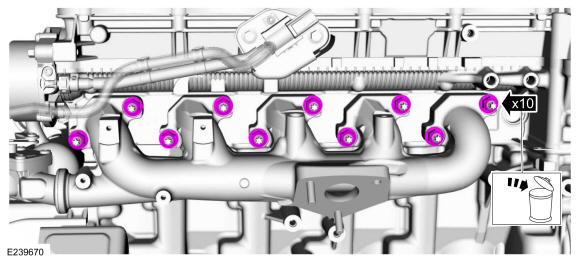

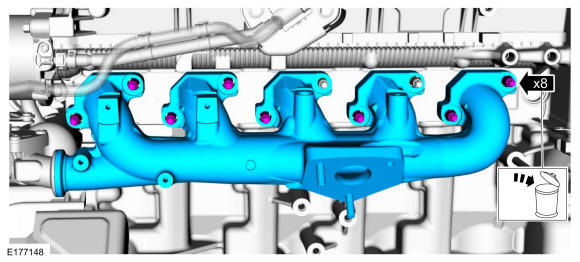

Remove and discard the exhaust manifold nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the exhaust manifold studs or damage to the stud torx head or cylinder head threads can occur.

Remove and discard the exhaust manifold studs. Remove the exhaust manifold and discard the EGR cooler gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the exhaust manifold studs or damage to the stud torx head or cylinder head threads can occur.

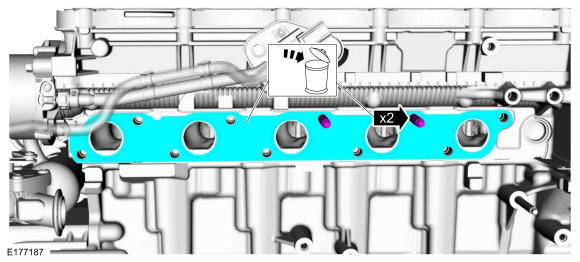

Remove and discard the exhaust manifold gasket. Remove and discard the exhaust manifold studs.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

NOTE: Use compressed air to remove any foreign material in the stud bolt holes.

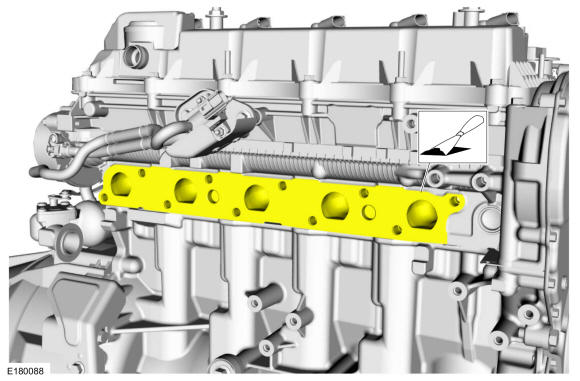

Clean the exhaust manifold mounting surface. Use the General Equipment: Plastic Scraper

Courtesy of FORD MOTOR COMPANY
Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .
