Engine Mount RH: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

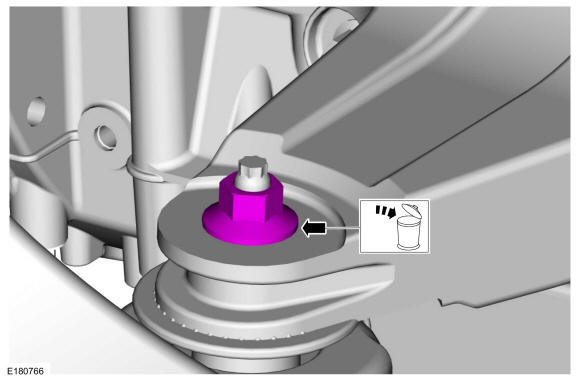

- Remove and discard the engine mount nut.

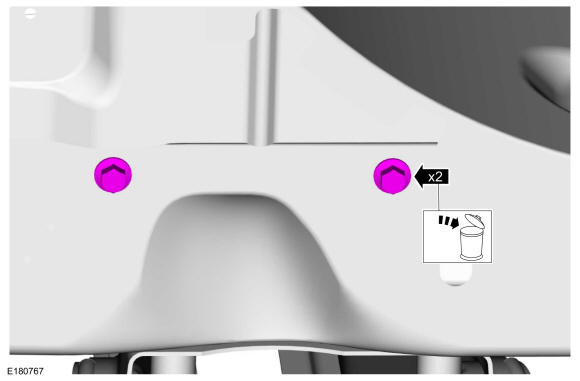

- Remove and discard the engine crossmember bolts.
- Remove the front lower air deflector.

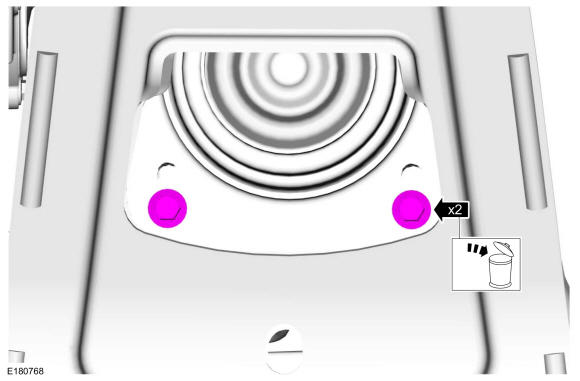

- Remove and discard the engine mount bolts.
- Remove the engine crossmember bracket.
-
NOTE: Position a wooden block between the oil pan and the crossmember for added safety.
Position the stand on the RH back corner of the cylinder block. Use the General Equipment: Vehicle/Axle Stands. Use the General Equipment: Wooden Block
- Remove the bolts and the bracket.

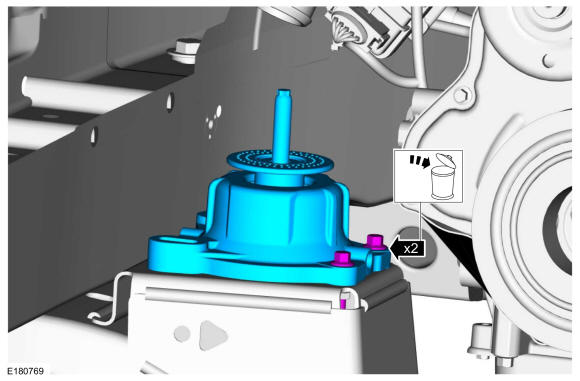

- Remove the bolts and the engine mount. Discard the bolts.
