Engine Mount LH: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

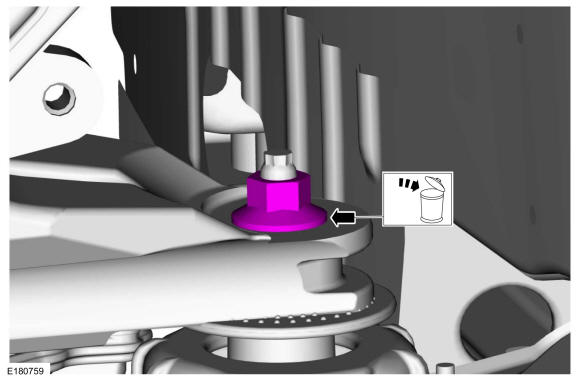

- Remove and discard the engine mount nut.

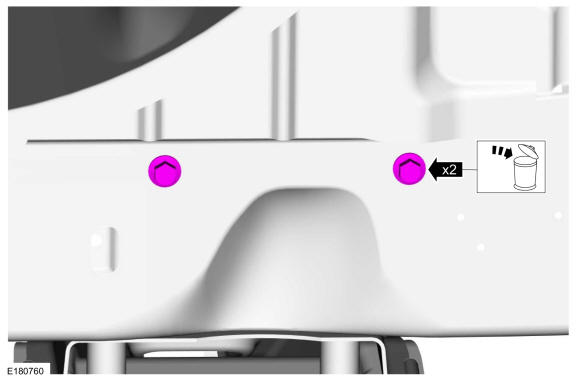

- Remove and discard the engine crossmember bolts.

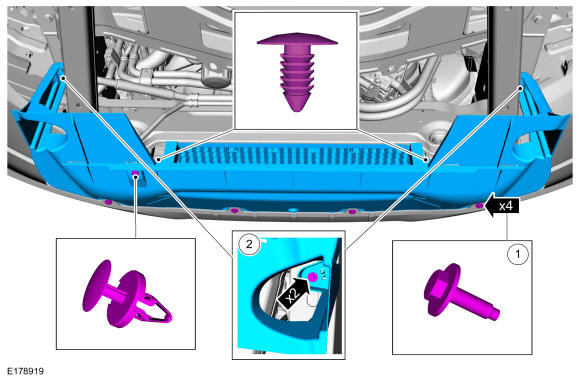

- Remove the front lower air deflector.

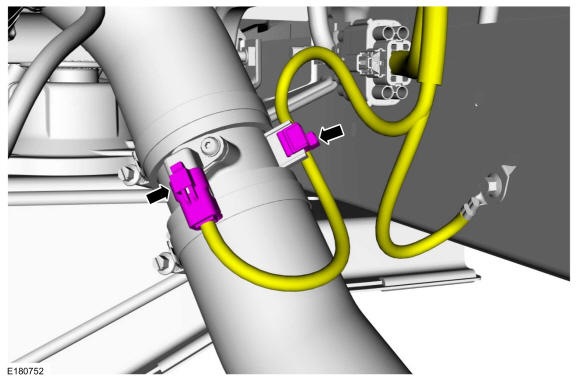

- Disconnect the electrical connector and wire retainer.

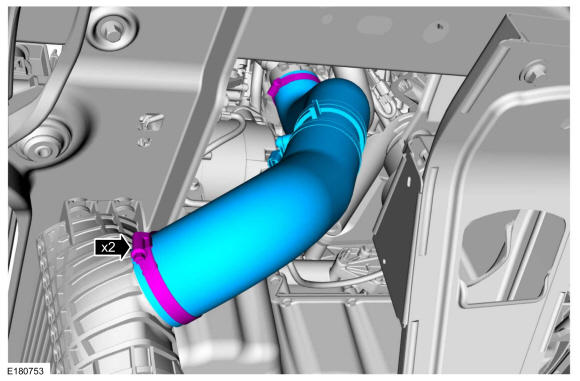

- Loosen the clamps and remove the CAC pipe.

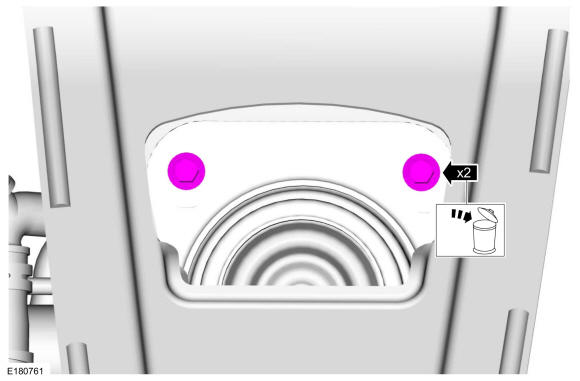

- Remove and discard the engine mount bolts.
- Remove the engine crossmember bracket.
-

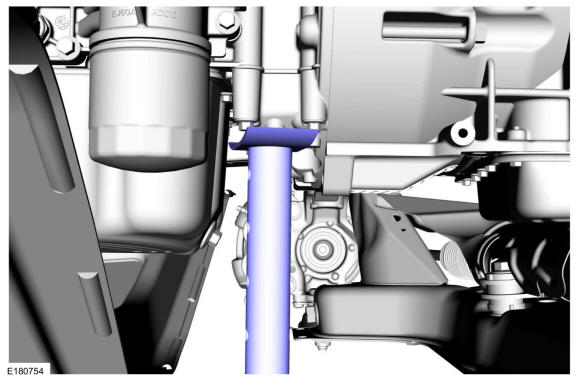

NOTE: Position a wooden block between the oil pan and the crossmember for added safety.
Position the stand on the LH back corner of the cylinder block. Use the General Equipment: Vehicle/Axle Stands. Use the General Equipment: Wooden Block

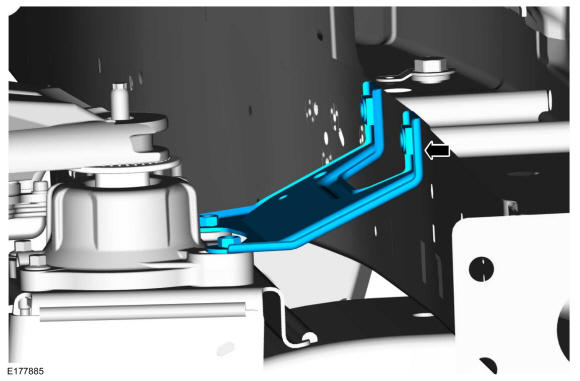

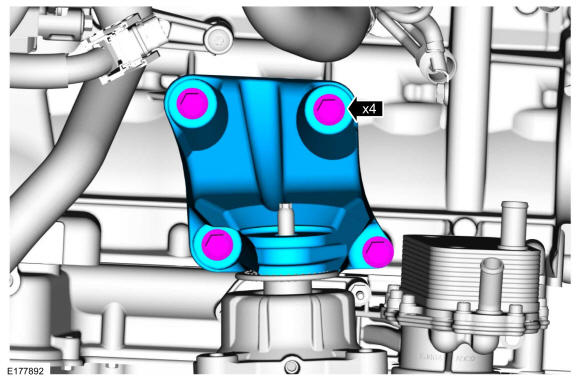

- Remove the bolts and the bracket.

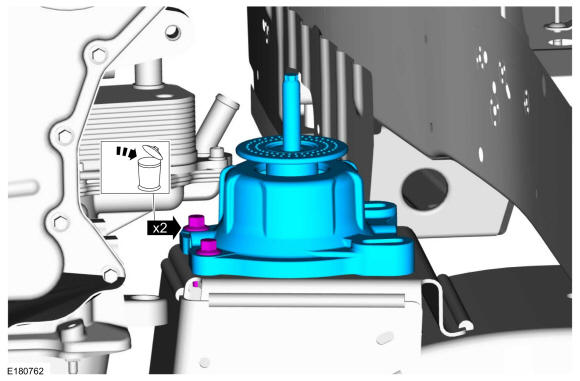

- Remove the bolts and the engine mount. Discard the bolts.
