Engine Mount LH: Installation
WARNING: This page is about a different variant/trim than selected.

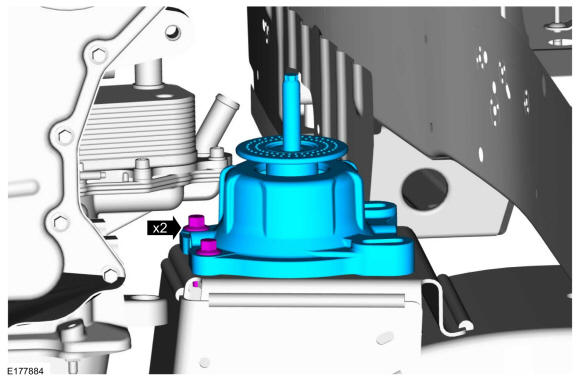

- Install the engine mount and the new bolts.
Torque: 22 lb.ft (30 Nm)
- Install the bracket and the bolts.
Torque: 46 lb.ft (63 Nm)
-
NOTE: Remove the wooden block between the oil pan and the crossmember.
Remove the stand. Use the General Equipment: Vehicle/Axle Stands. Use the General Equipment: Wooden Block
- Position the crossmember bracket.
-
NOTE: Only hand start the bolts in this step.
Install the new engine mount bolts.
- Install the new engine crossmember bolts.
Torque: 46 lb.ft (63 Nm)
- Tighten the engine mount bolts.
Torque: 22 lb.ft (30 Nm)
- Install the CAC pipe and tighten the clamps.
Torque: 48 lb.in (5.4 Nm)
- Connect the electrical connector and wire retainer.
- Install the front lower air deflector.
Torque: 1: 44 lb.in (5 Nm) 2: 97 lb.in (11 Nm)

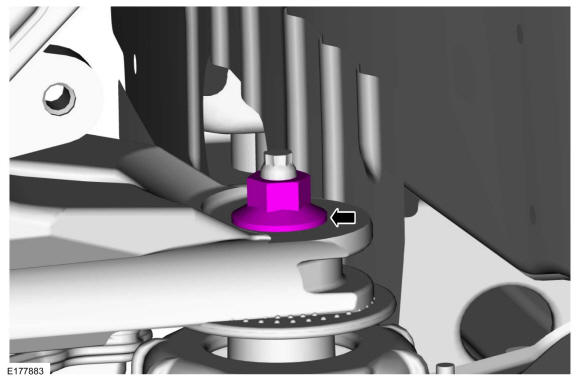

- Install the new engine mount nut.
Torque: 85 lb.ft (115 Nm)
