Crankshaft Rear Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the flexplate. Refer to: Flexplate .

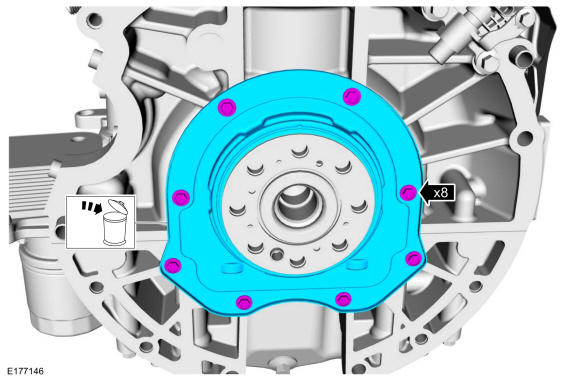

- Remove the bolts and the crankshaft rear seal. Discard the crankshaft rear seal.
