Crankshaft Rear Seal: Installation

WARNING: This page is about a different variant/trim than selected.

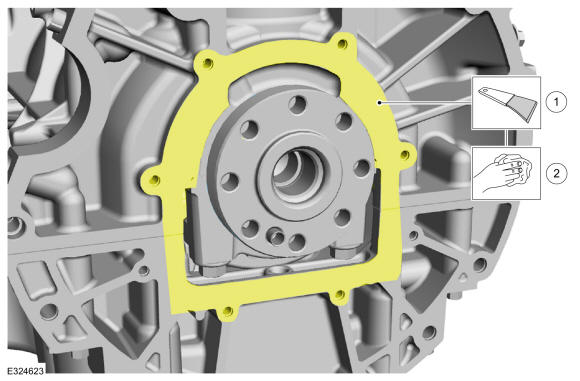

1. Remove any deposits of sealer with a plastic scraper. Use the General Equipment: Plastic Scraper
2. NOTE: Make sure that the mating faces are clean and free of foreign material.

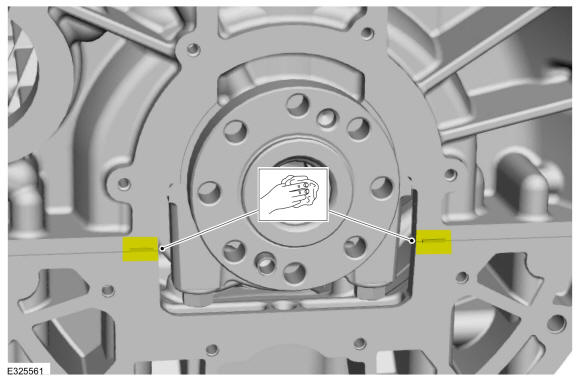

  Clean the crankshaft rear seal sealing surface.
Courtesy of FORD MOTOR COMPANY
Prep the surface with Motorcraft® Metal Surface Prep Wipes.
Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY
NOTE: Do not remove the alignment sleeve from the crankshaft rear seal prior to installation on the crankshaft.

NOTE: Make sure that a new component is installed.

NOTE: Make sure that the mating faces are clean and free of foreign material.

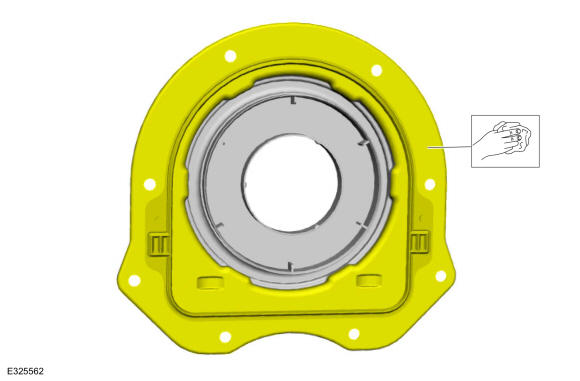

Clean the crankshaft rear seal sealing surface.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

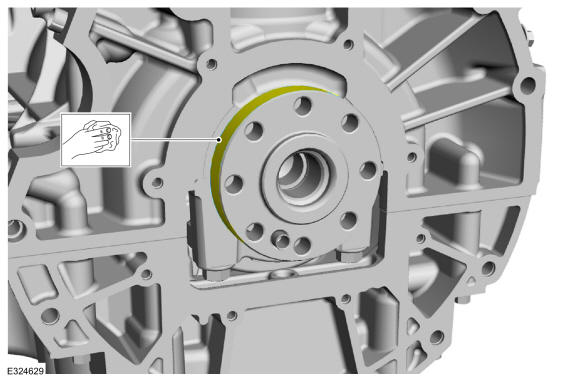

Clean and inspect the crankshaft sealing surface.

Courtesy of FORD MOTOR COMPANY
NOTE: Install the new crankshaft rear seal within five minutes of applying the sealant.

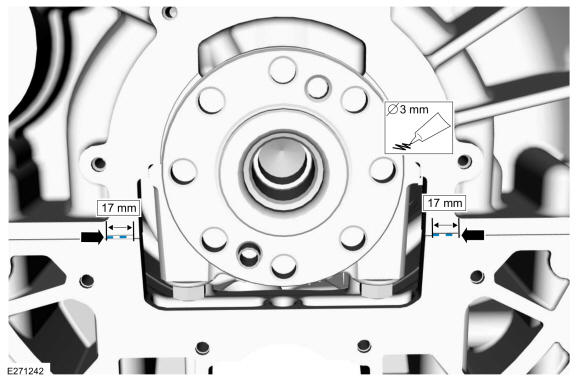

Apply a 3 mm (0.12 in) bead of Silicone Sealant in the locations shown.

Material: Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: The new crankshaft rear seal is supplied with an alignment sleeve which must be removed after installation.

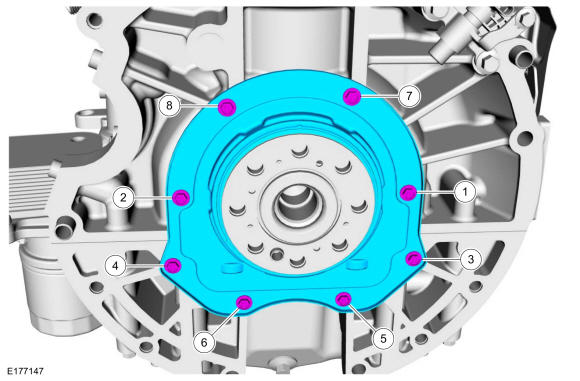

Install the crankshaft rear seal and the bolts. Tighten in the sequence shown in 3 stages.

Torque: Stage 1: 44 lb.in (5 Nm) Stage 2: 89 lb.in (10 Nm) Stage 3: 89 lb.in (10 Nm)

Fig 1: Crankshaft Rear Seal Retainer Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the flexplate. Refer to: Flexplate .
