Crankshaft Front Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
  3. Remove the accessory drive belt. Refer to: Accessory Drive Belt .

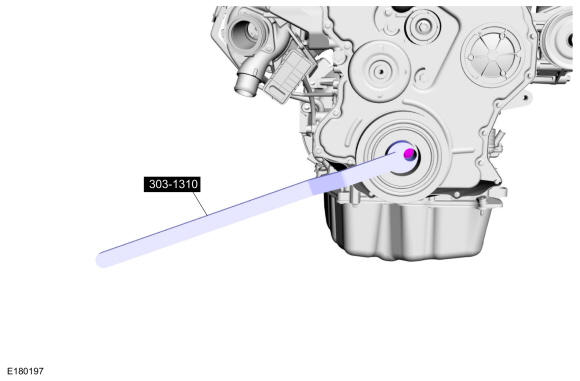

  4. Using the special tool, loosen the crankshaft pulley bolts. Use Special Service Tool: 303-1310 Holding Wrench, Crankshaft.
    GFD307788Courtesy of FORD MOTOR COMPANY

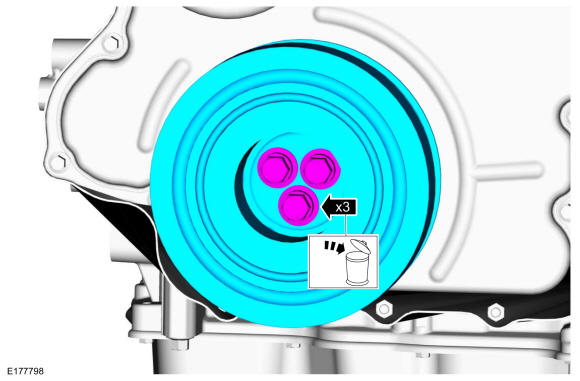

  5. Remove bolts and the crankshaft pulley. Discard the bolts.
    GFD307789Courtesy of FORD MOTOR COMPANY

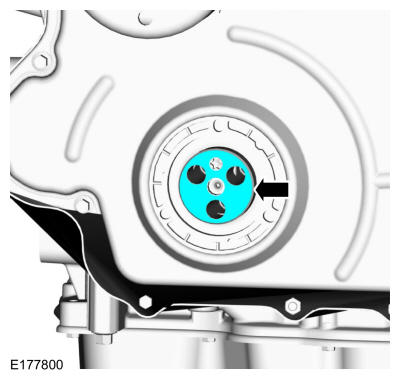

  6. Remove the crankshaft washer.
    GFD307790Courtesy of FORD MOTOR COMPANY

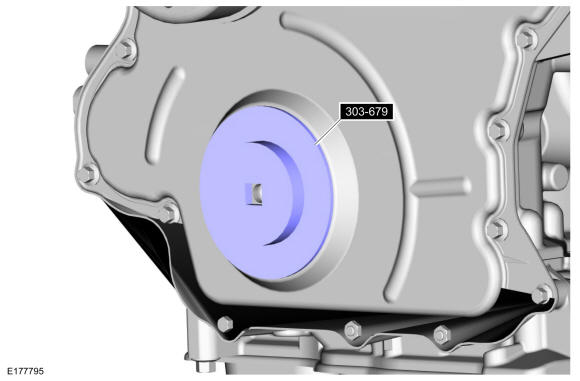

  7. Using the special tool, release the crankshaft front seal from the engine front cover. Use Special Service Tool: 303-679A Remover/Installer, Engine Front Cover Inspection Plate.
    GFD307791Courtesy of FORD MOTOR COMPANY
  8. Remove and discard the crankshaft front seal.
GFD307792Courtesy of FORD MOTOR COMPANY
