Removal And Installation: Camshafts: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the following items:
1. Remove the timing chain. Refer to: Timing Chain .
2. Remove the fuel rail. Refer to: Fuel Rail .
3. Remove the brake vacuum pump. Refer to: Brake Vacuum Pump - 3.2L Duratorq-TDCi (148kW/200PS) - Puma .
Remove the bolt and position aside the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and position aside the valve assembly.

Courtesy of FORD MOTOR COMPANY
Remove the nut, bolt and the thermostat bracket.

Courtesy of FORD MOTOR COMPANY

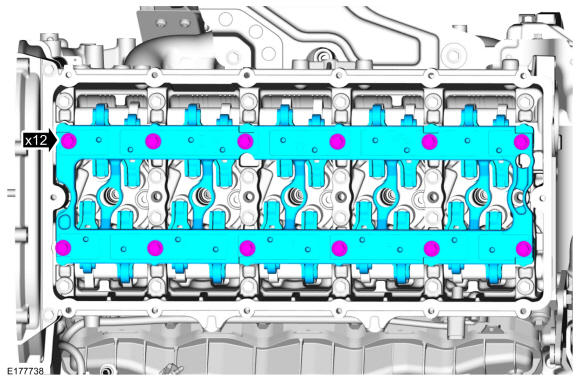

Remove the bolts and the valve rocker arm housing.

Courtesy of FORD MOTOR COMPANY

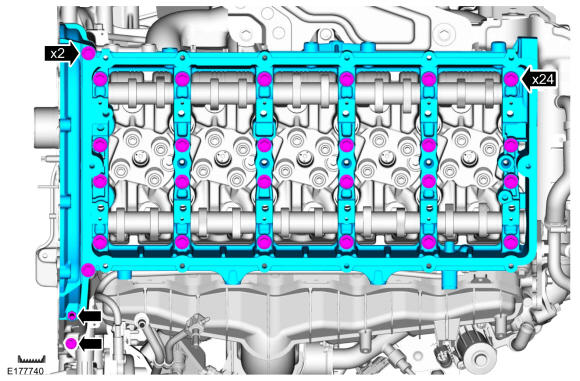

Remove the bolts and the upper cylinder head.

Courtesy of FORD MOTOR COMPANY

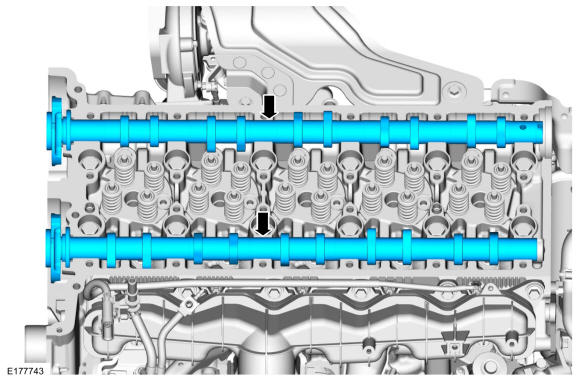

NOTE: Mark the exhaust and intake camshafts for installation into there original locations.

Remove the camshafts.

Courtesy of FORD MOTOR COMPANY

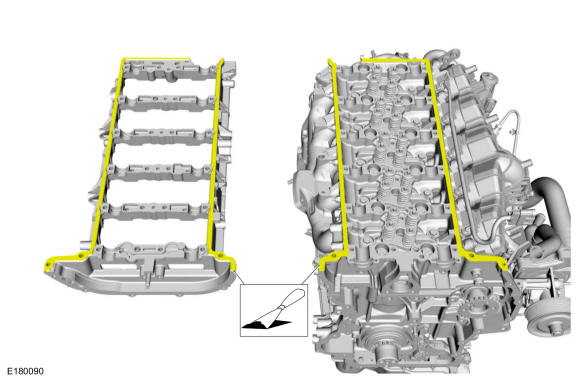

Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
