Disassembly And Assembly Of Subassemblies: Piston: Disassembly
WARNING: This page is about a different variant/trim than selected.
NOTE:

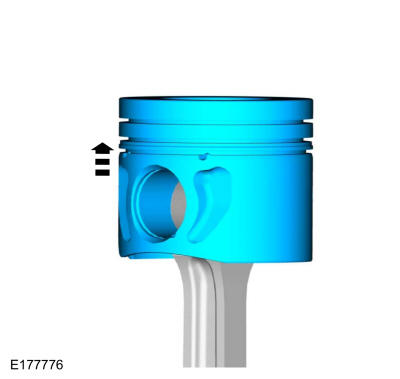

If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

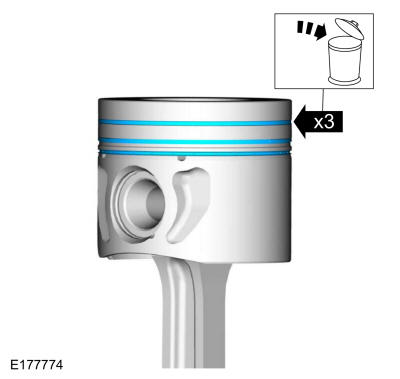

- Remove and discard the piston rings.

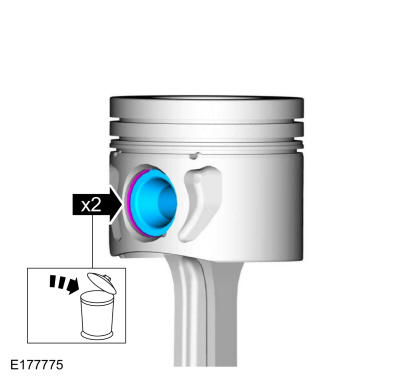

- Remove and discard the piston pin retainers. Remove the piston pin.
- Separate the piston from the connecting rod. Clean and inspect the piston. Refer to: Piston Inspection .
