Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

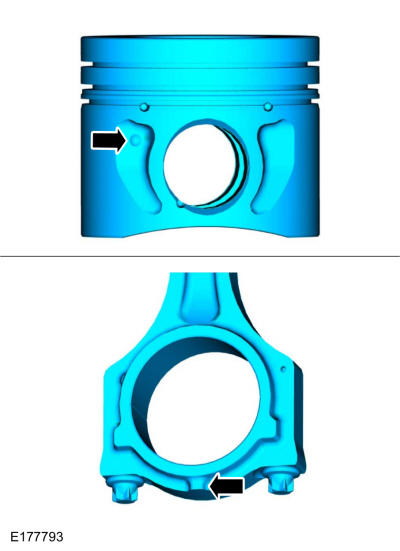

NOTE: Align the piston-to-connnecting rod orientation marks made during disassembly.

Align the front of the piston and connecting rod. Assembly the piston and the connecting rod.

Courtesy of FORD MOTOR COMPANY

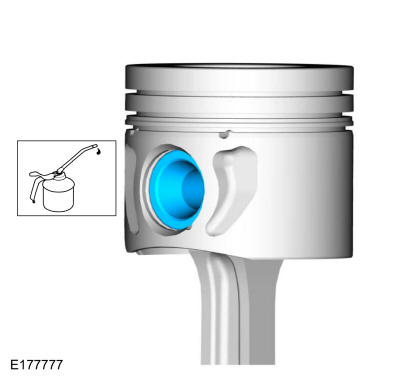

Lubricate with clean engine oil and install the piston pin.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

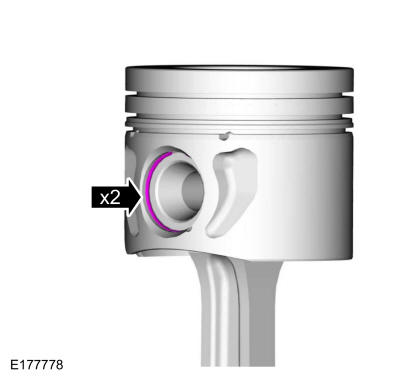

Install the piston pin retainers.

Courtesy of FORD MOTOR COMPANY

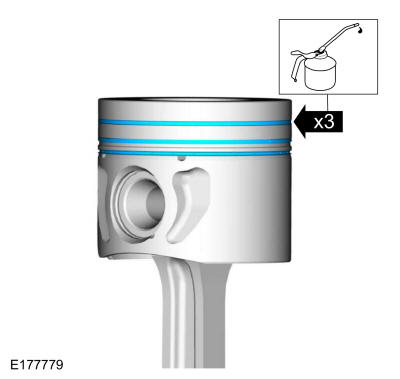

NOTE: The rings are to be fitted with the paint mark to the left of the piston ring gap.

NOTE: The upper and lower compression ring gaps are the be installed 180 degrees apart.

NOTE: The oil control ring position is not controlled.

Lubricate with clean engine oil and install the piston rings.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
