Cylinder Head: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: The glow plugs protrude past the lower face of the cylinder head, any impact on the tip of the glow plug may result in glow plug damage.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.

NOTE: If the engine components are to be reinstalled, they must be reinstalled in the same positions. Mark the components removed for locations.

Disconnect and remove the coolant hose.

Courtesy of FORD MOTOR COMPANY
Remove the bolts. Disconnect and remove the coolant tube.

Courtesy of FORD MOTOR COMPANY

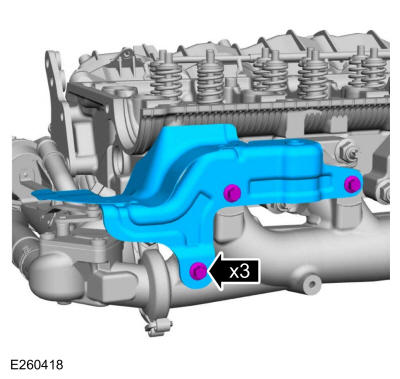

Remove the bolts and the heat shield.

Courtesy of FORD MOTOR COMPANY

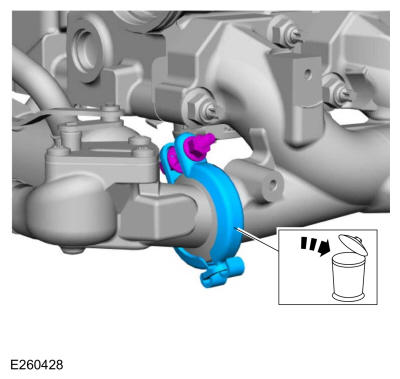

Remove and discard the EGR cooler clamp.

Courtesy of FORD MOTOR COMPANY

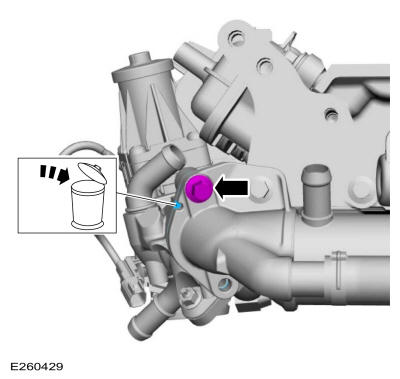

Remove the bolt for the EGR cooler. Discard the EGR valve gasket.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the EGR cooler.

Courtesy of FORD MOTOR COMPANY
Remove and discard the EGR cooler gasket.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and the EGR valve.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the mixer tube.

Courtesy of FORD MOTOR COMPANY

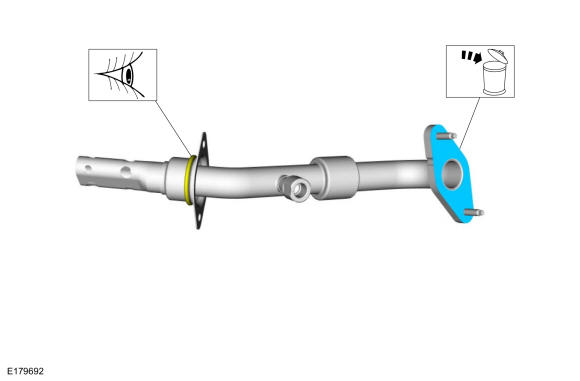

NOTE: The O-ring seal is to be reused unless damaged.

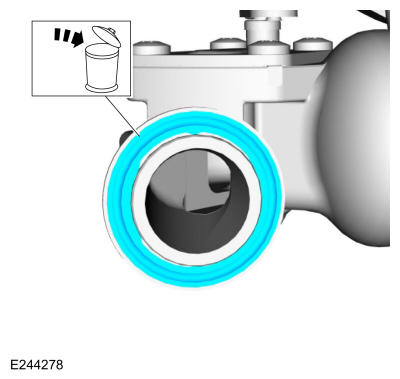

Inspect the O-ring. Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY

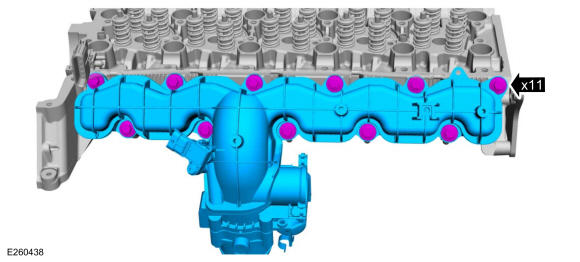

Remove the bolts and the intake manifold.

Courtesy of FORD MOTOR COMPANY

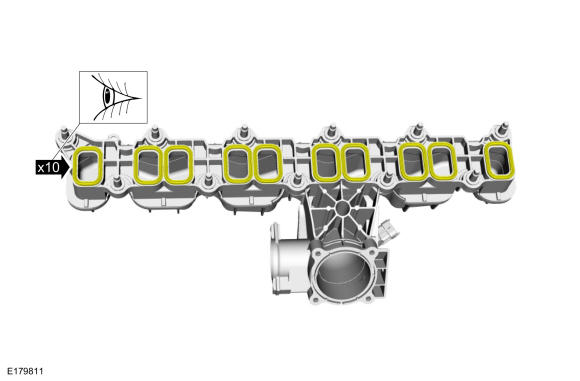

Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If the conditions are not present, the gaskets may be reused.

Courtesy of FORD MOTOR COMPANY
Remove the glow plug harness.

Courtesy of FORD MOTOR COMPANY
Remove the glow plugs.

Courtesy of FORD MOTOR COMPANY

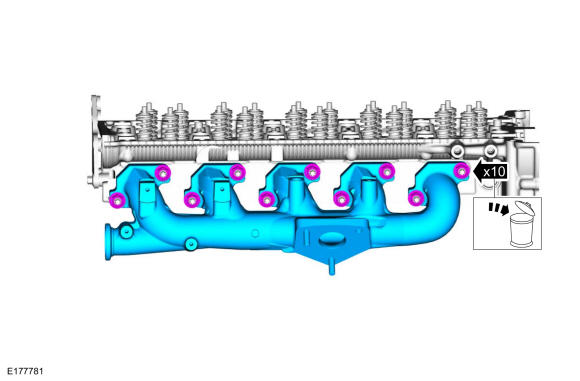

Remove and nuts and the exhaust manifold. Discard the nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Only use hand tools when loosening or tightening the exhaust manifold studs or damage to the stud torx head or cylinder head threads can occur.

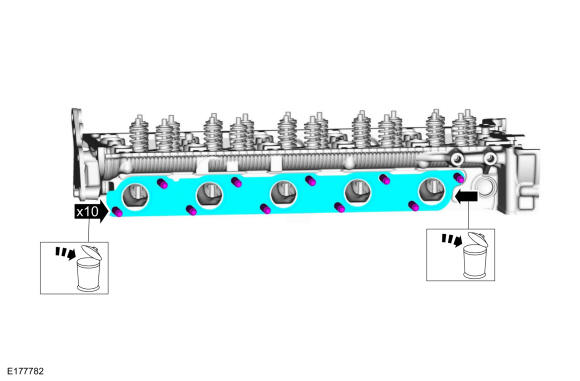

Remove and discard the exhaust manifold gasket. Remove and discard the exhaust manifold studs.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

NOTE: Use compressed air to remove any foreign material in the stud bolt holes.

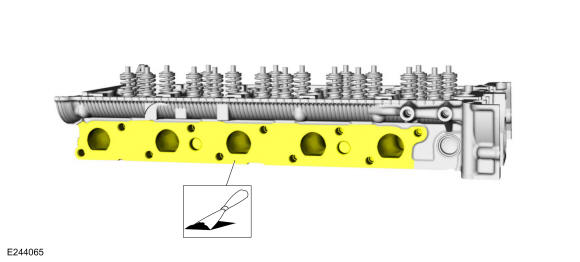

Clean the exhaust manifold mounting surface. Use the General Equipment: Plastic Scraper

Courtesy of FORD MOTOR COMPANY
Clean and inspect the exhaust manifold Refer to: Exhaust Manifold Cleaning and Inspection .
Remove the bolt and the lifting bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: Use a commercially available valve spring compressor.

NOTE: Use a small screwdriver and multi-purpose grease to remove the valve collets.

Remove the valve collets, valve spring retainer and the valve spring.

Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY

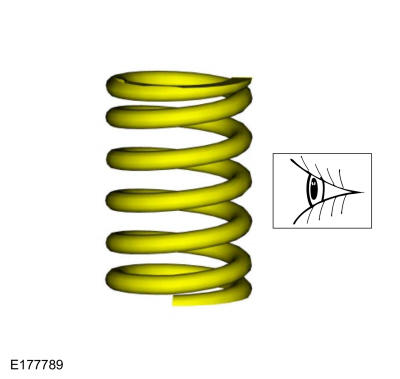

Inspect and install new parts, as necessary.

Courtesy of FORD MOTOR COMPANY
NOTE: Use commercially available valve stem seal pliers.

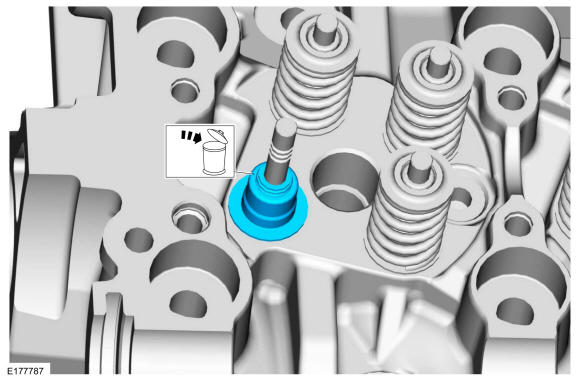

Remove and discard the valve seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the location of the valves if they are to be reused.

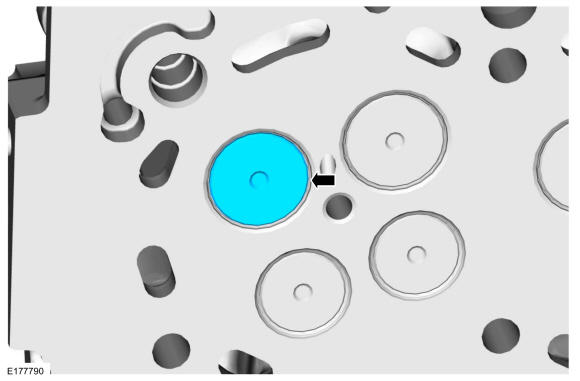

Remove the valve from the cylinder head.

Courtesy of FORD MOTOR COMPANY
Repeat the above steps for each valve.

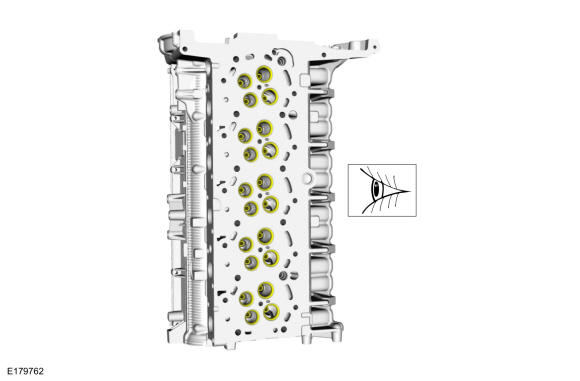

Inspect the intake and exhaust valve guides and valve seats.

Courtesy of FORD MOTOR COMPANY

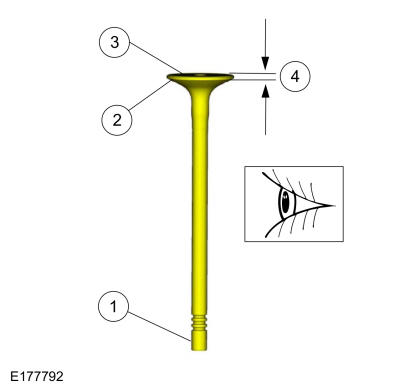

1. Inspect the following valve areas: The end of the stem for grooves or scoring.
2. The valve face and the edge for pits, grooves or scores.
3. The valve head for signs of burning, erosion, warpage and cracking.
4. The valve margin for wear.
- Install new parts as necessary.

Courtesy of FORD MOTOR COMPANY
