Reductant Dosage Control Module (RDCM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.

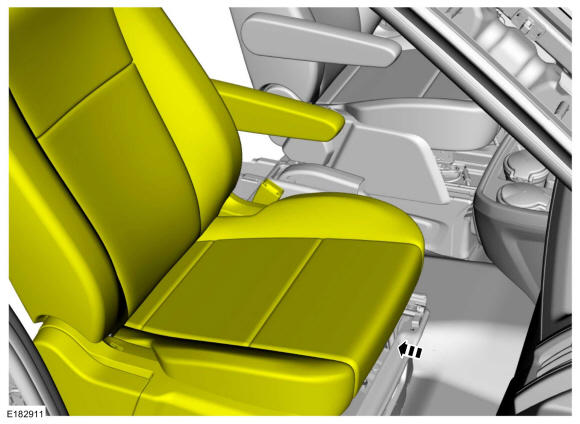

- Position the seat to the rear most position.
 Courtesy of FORD MOTOR COMPANY
|

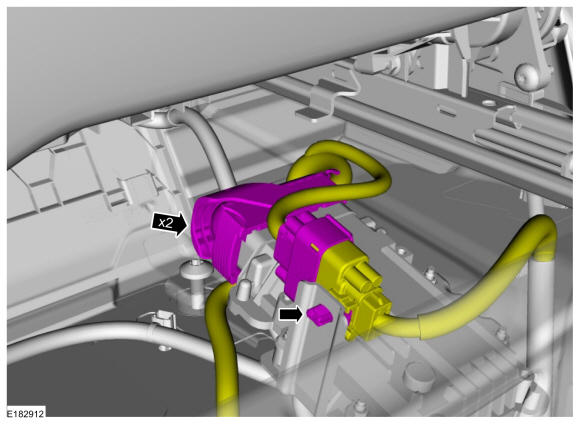

- Release the wire harness retainer and disconnect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|

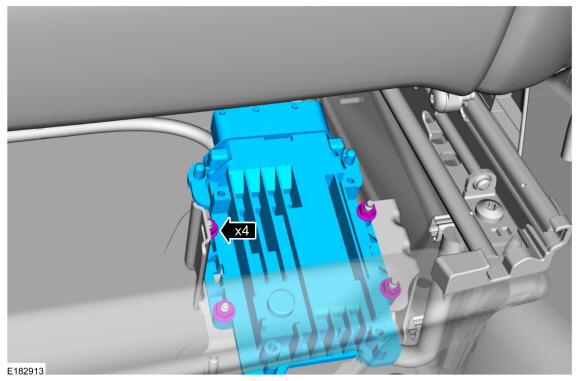

- Remove the retainers and the reductant dosage control module (RDCM).
Torque: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
