Powertrain Control Module (PCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation And Component Description .
Remove the LH headlight. Refer to: Headlamp Assembly .

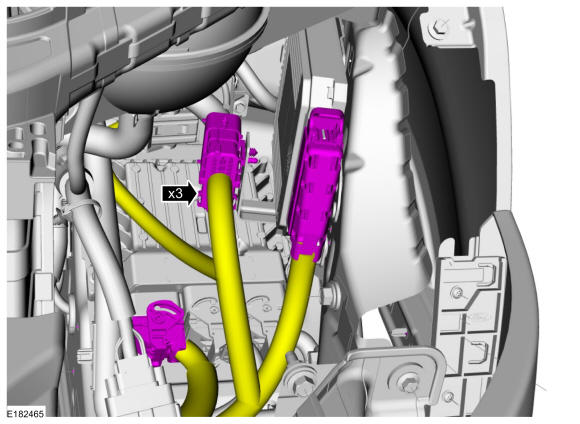

Disconnect the transmission control module and the engine harnesses.

Courtesy of FORD MOTOR COMPANY

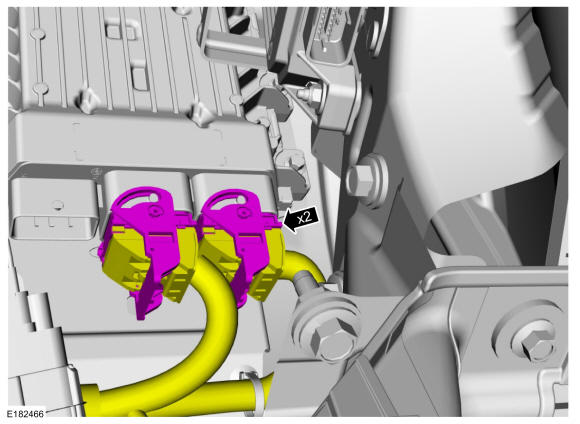

Disconnect the PCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

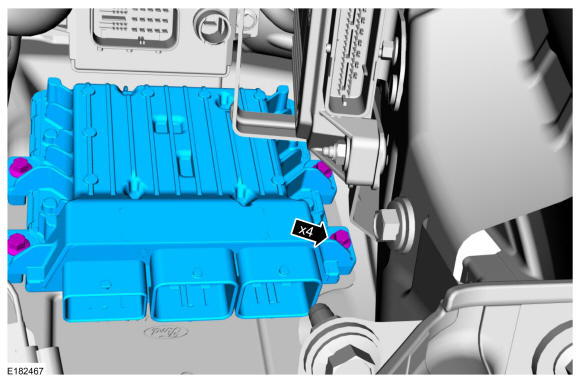

Remove the bolts and the PCM.

Courtesy of FORD MOTOR COMPANY
