Powertrain Control Module (PCM): Installation
WARNING: This page is about a different variant/trim than selected.
- Install the PCM and the bolts.
Torque: 97 lb.in (11 Nm)
- Connect the PCM electrical connectors.
- Connect the transmission control module and the engine harnesses.
- Install the LH headlight. Refer to: Headlamp Assembly .
-
NOTE: This step is only necessary when installing a new component.

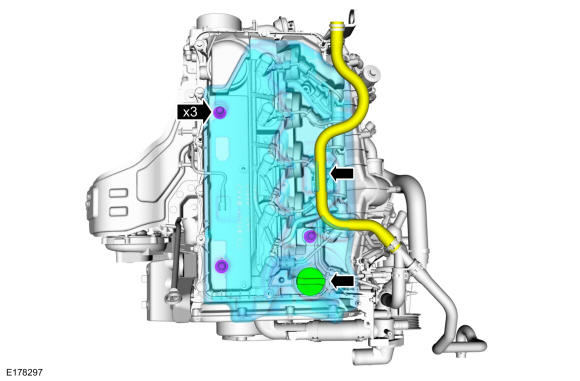

Position the hose aside, remove the oil filler cap and remove the engine appearance cover. Install the oil filler cap.
-

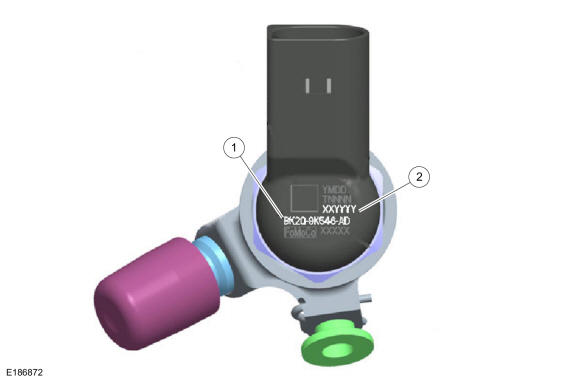

NOTE: This step is only necessary when installing a new component.NOTE: The PCM is programmed with an IQA code for each fuel injector. If a new PCM is installed record the fuel injector IQA code located on top of the fuel injector.
- Ford part number (example).
- Fuel injector IQA code.
-
NOTE: This step is only necessary when installing a new component.
Remove the oil filler cap. Install the engine appearance cover, position the hose back and install the oil filler cap.
-
NOTE: This step is only necessary when installing a new component.NOTE: The PCM must be programmed with the proper fuel injector IQA codes.
- Upload the module information from the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation And Component Description .
- Using the scan tool, follow the on-screen instructions and program the PCM with the appropriate fuel injector IQA code for any fuel injector that was replaced.
-
NOTE: This step is only necessary when installing a new component.NOTE: Vehicles without PATS may still require a parameter reset.
Carry out the Parameter Reset procedure. Refer to: Passive Anti-Theft System (PATS) Parameter Reset .
-
NOTE: This step is only necessary when installing a new component.
Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
