Particulate Matter Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
- To install, reverse the removal procedure.
-
NOTE: If reusing the original sensor, Bostik Never-Seez Regular Grade (nickel free) antiseize thread-lube needs to be applied. Take care not to get any lube below the flange of the probe.NOTE: Use of anti-seize with nickel could contaminate the sensor.

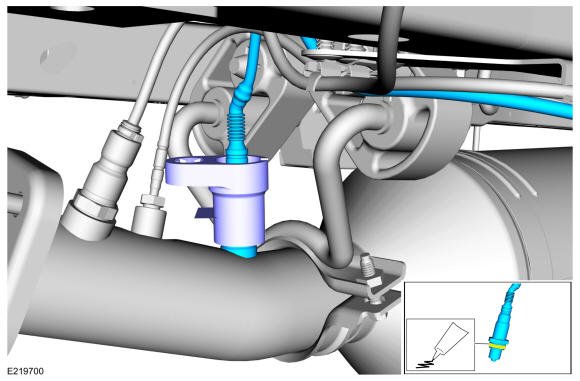

Install Particulate Matter module and sensor assembly.
Material: Bostik Never-Seez Regular Grade (nickel free) Anti-Seize and Lubricating Compound
Torque: 35 lb.ft (48 Nm)
