Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the MAPT sensor electrical connector.
    GFD310308Courtesy of FORD MOTOR COMPANY

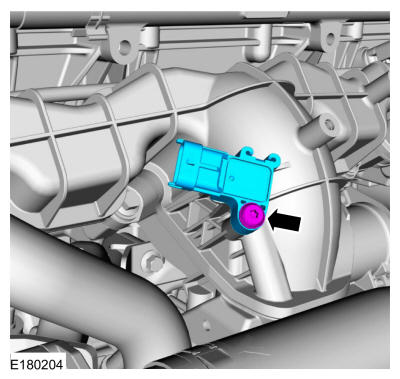

  2. Remove the bolt and the MAPT sensor.
GFD310309Courtesy of FORD MOTOR COMPANY
