Manifold Absolute Pressure and Temperature (MAPT) Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
-

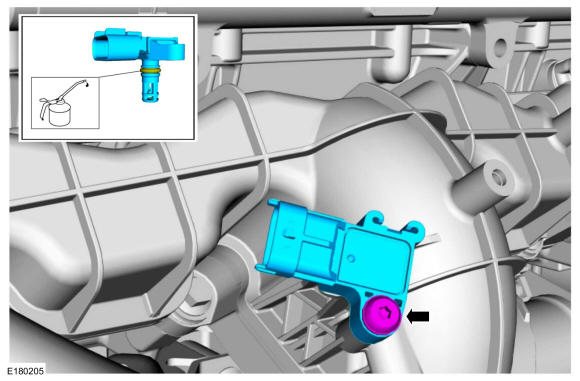

NOTE:
Lubricate the O-ring seal with clean engine oil.
Install the MAPT sensor and the bolt.
Torque: 35 lb.in (4 Nm)
 Courtesy of FORD MOTOR COMPANY
|

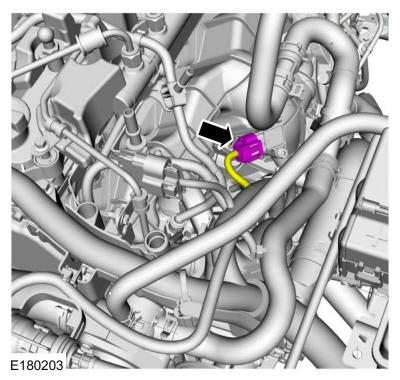

- Connect the MAPT sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
