Intake Air Temperature 2 (IAT2) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

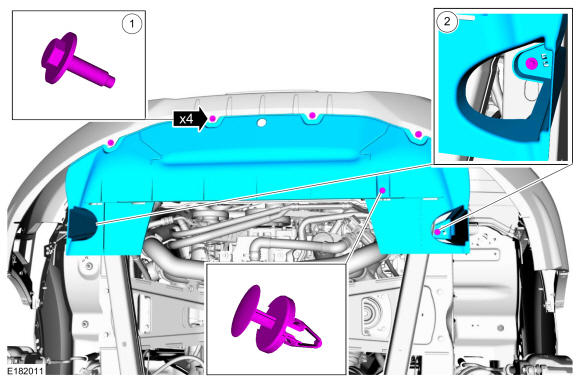

- Remove the front lower air deflector.
Torque: 1: 44 lb.in (5 Nm) 2: 97 lb.in (11 Nm)

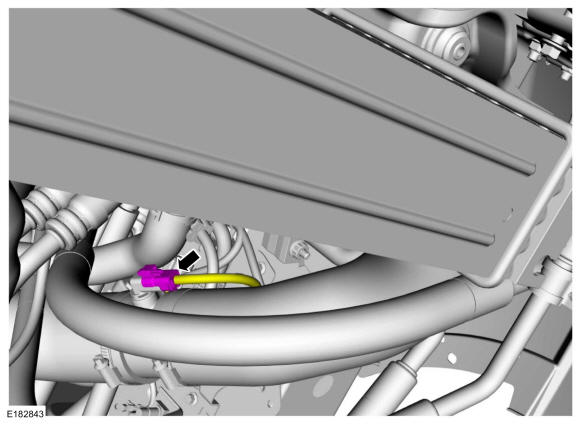

- Disconnect the IAT2 electrical connector.

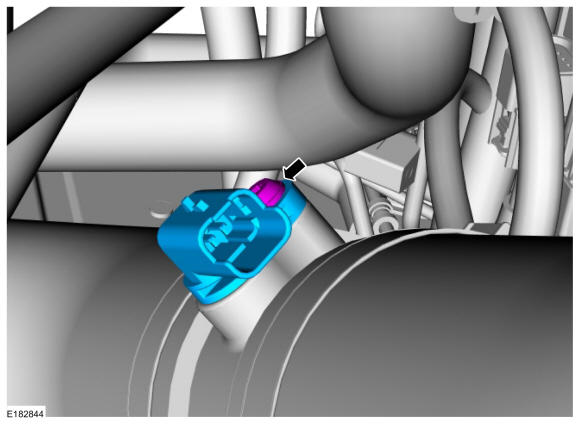

- Remove the screw and the IAT2 sensor.
Torque: 27 lb.in (3 Nm)
