Fuel Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery. Refer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries .
- Remove the throttle body. Refer to: Throttle Body .

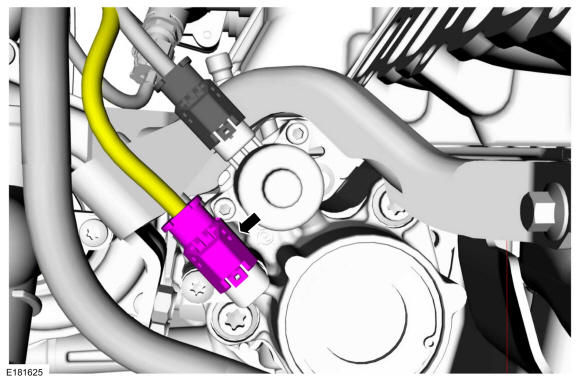

- Disconnect the fuel injection pump temperature sensor.
-

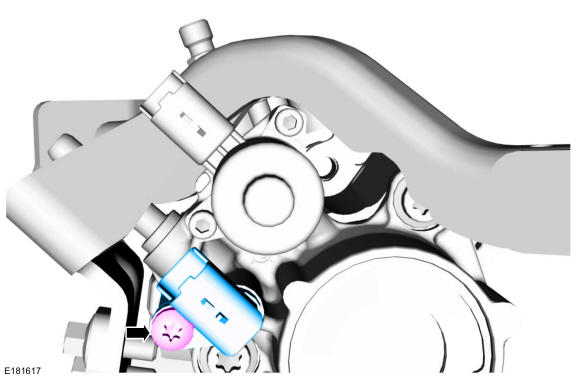

- Remove the fuel injection pump temperature sensor mounting bolt.
Torque: 71 lb.in (8 Nm)
- Remove the fuel injection pump temperature sensor.
- Remove the fuel injection pump temperature sensor mounting bolt.
