Exhaust Gas Temperature Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not use silicone based sprays or lubricants on any components installed onto or around the diesel exhaust system or intake air distribution and filtering system. Silicone reacts with the Nitrogen Oxides (NOx) sensors and may cause permanent damage to the NOx sensors.
NOTE:
Removal steps in this procedure may contain installation details.
Exhaust Gas Temperature Sensor 11

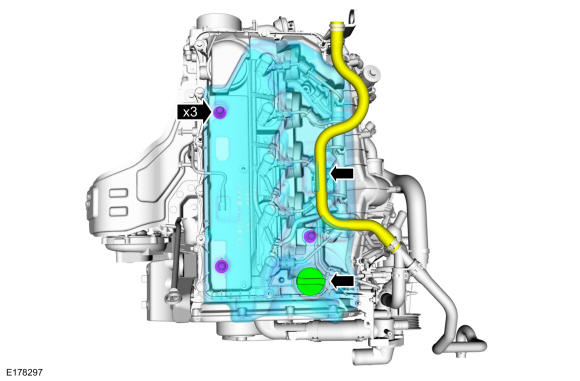

- Position the hose aside, remove the oil filler cap and remove the engine appearance cover.

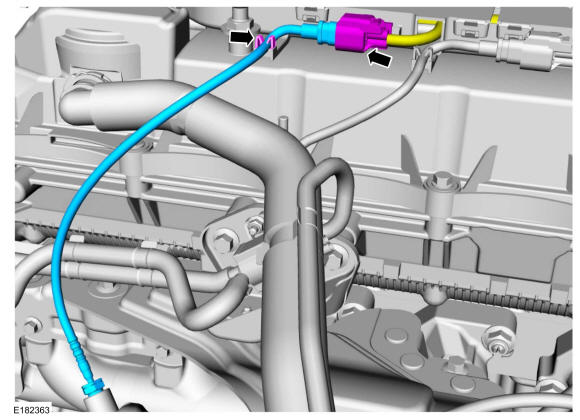

- Disconnect electrical connector, unclip wire and remove the exhaust gas temperature sensor.
Torque: 22 lb.ft (30 Nm)
Exhaust Gas Temperature Sensor 12
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

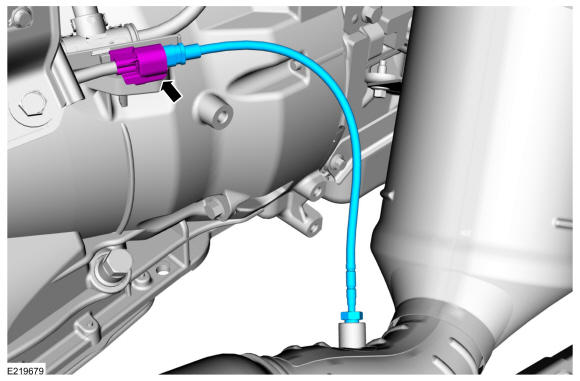

- Disconnect electrical connector and remove the exhaust gas temperature sensor.
Torque: 22 lb.ft (30 Nm)
Exhaust Gas Temperature Sensor 13
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

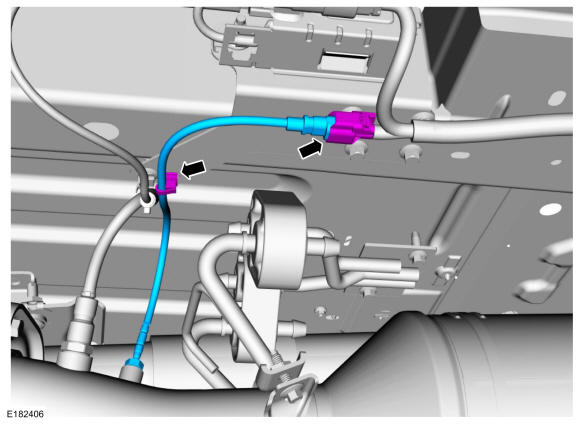

- Disconnect electrical connector, remove the wire harness retainer and remove the exhaust gas temperature sensor.
Torque: 22 lb.ft (30 Nm)
