Engine Oil Level Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect oil level sensor electrical connector.

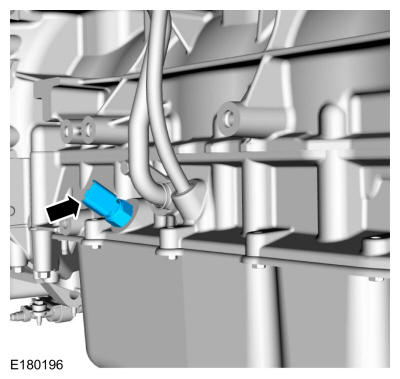

- Remove the oil level sensor.
Torque: 20 lb.ft (27 Nm)
