Engine Coolant Temperature (ECT) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

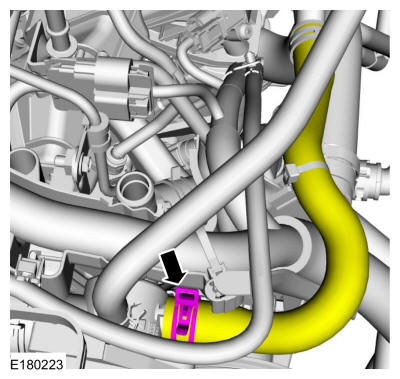

- Release spring clamp and position aside the heater hose.

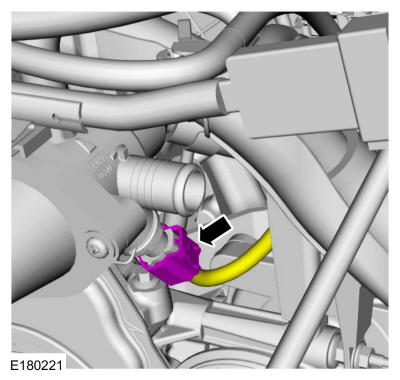

- Disconnect the ECT sensor electrical connector.

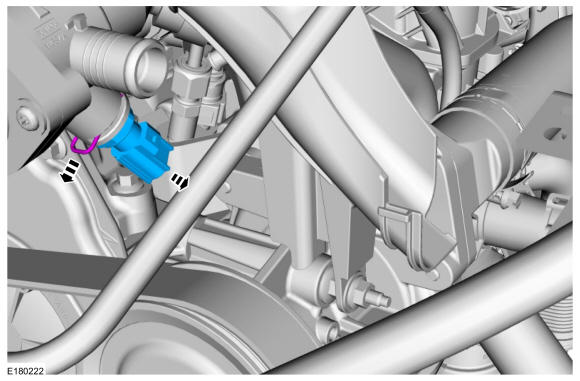

- Remove retainer clip and then remove ECT sensor.
