Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the bolt and the heat shield.
- Disconnect the CKP sensor electrical connector.

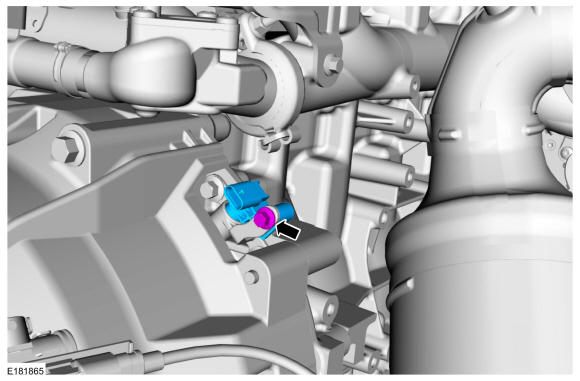

- Remove the bolt and the CKP sensor.
