Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

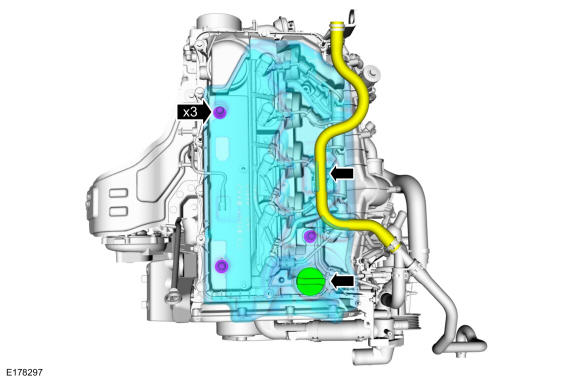

  1. Position coolant hose aside, remove the oil filler cap and remove the engine appearance cover.
    GFD310280Courtesy of FORD MOTOR COMPANY

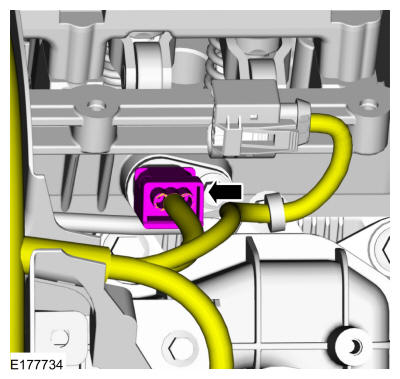

  2. Disconnect the CMP sensor electrical connector.
    GFD310281Courtesy of FORD MOTOR COMPANY

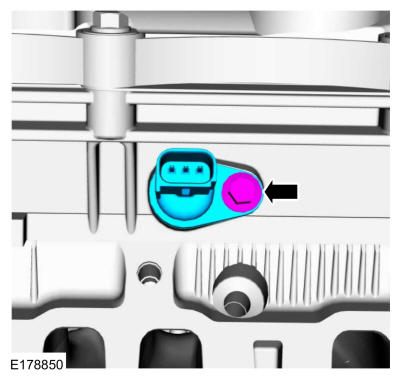

  3. Remove the bolt and the CMP sensor.
GFD310282Courtesy of FORD MOTOR COMPANY
