Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

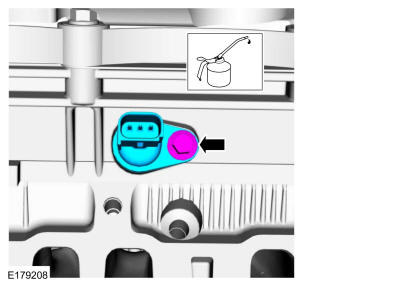

    • Apply clean engine oil and install the CMP sensor and bolt.

      Torque: 71 lb.in (8 Nm)

    • To install, reverse the removal procedure.

GFD310283Courtesy of FORD MOTOR COMPANY
