Crankshaft Position (CKP) Sensor Bracket Adjustment

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1562 Timing Tool
Courtesy of FORD MOTOR COMPANY	303-1587 Timing Tool, Crankshaft
Feeler Gauge

Activation

Remove the engine front cover. Refer to: Engine Front Cover .

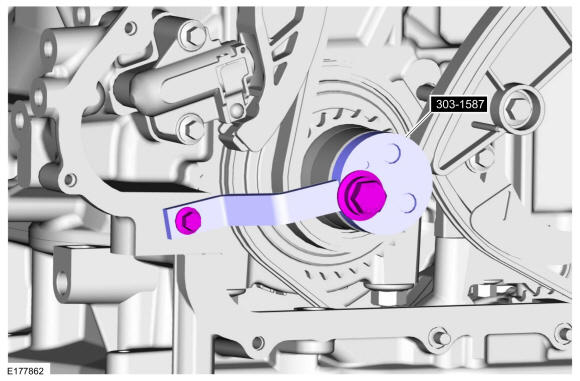

Using the special tool, set the crankshaft position. Install Special Service Tool: 303-1587 Timing Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY

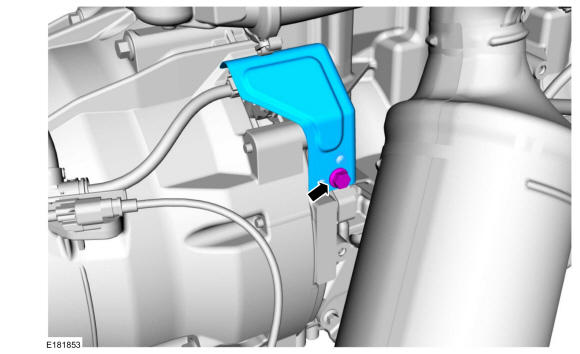

Remove the bolt and the heat shield.

Courtesy of FORD MOTOR COMPANY

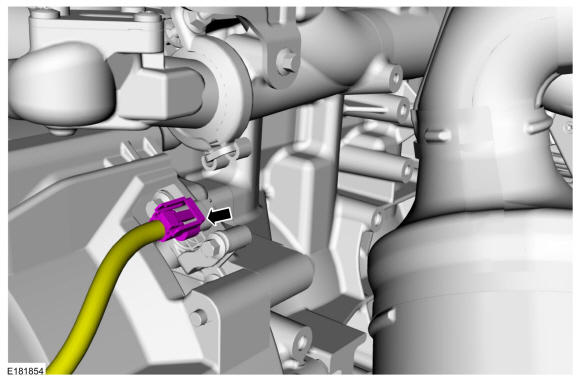

Disconnect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

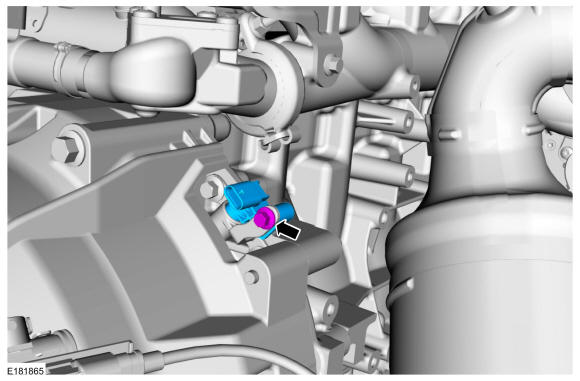

Remove the bolt and the CKP sensor.

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission is removed for clarity.

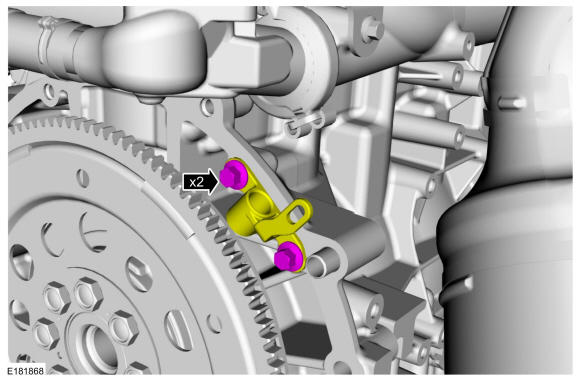

Loosen the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission is removed for clarity.

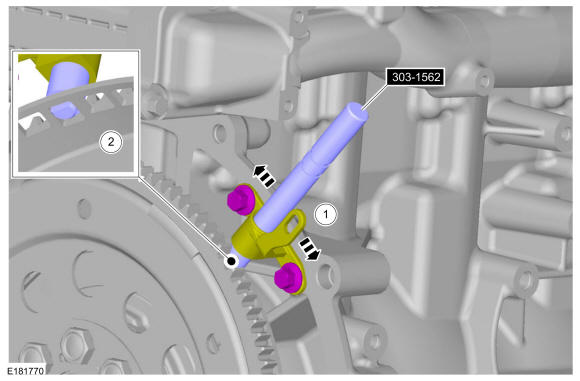

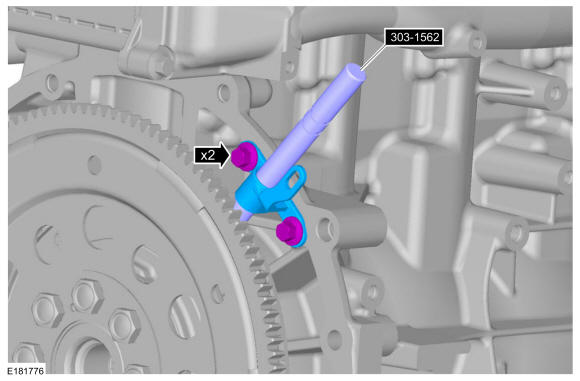

- Using the special tool, align the CKP sensor bracket. Use Special Service Tool: 303-1562 Timing Tool.
- Make sure that the special tool is located in the flexplate timing slot.
Courtesy of FORD MOTOR COMPANY
NOTE: The transmission is removed for clarity.
- Tighten the bolts before removing tool. Use Special Service Tool: 303-1562 Timing Tool.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY
Remove special tool. Remove Special Service Tool: 303-1587 Timing Tool, Crankshaft.

Courtesy of FORD MOTOR COMPANY

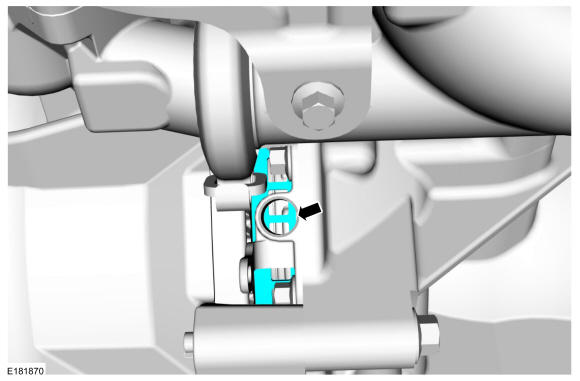

Rotate the crankshaft until the trigger tooth is visible through the CKP sensor housing.

Courtesy of FORD MOTOR COMPANY

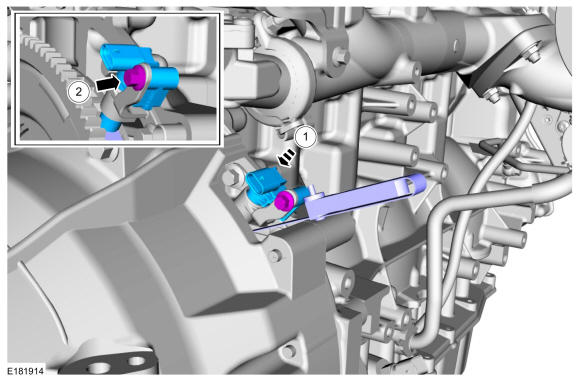

- Install the CKP sensor and loosely install the bolt. Apply light pressure to ensure contact with the 0.008 inch (0.2 mm) feeler gauge blade. Use the General Equipment: Feeler Gauge
- Tighten the bolt
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the heat shield and the bolt.
Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
